Evertz XRF4 850–2450 MHz 64×128 Ultra-High-Density L-Band/Wideband RF Router

Evertz XRF4 64×128 Ultra-High-Density L-Band/Wideband RF Router, 850–2450 MHz

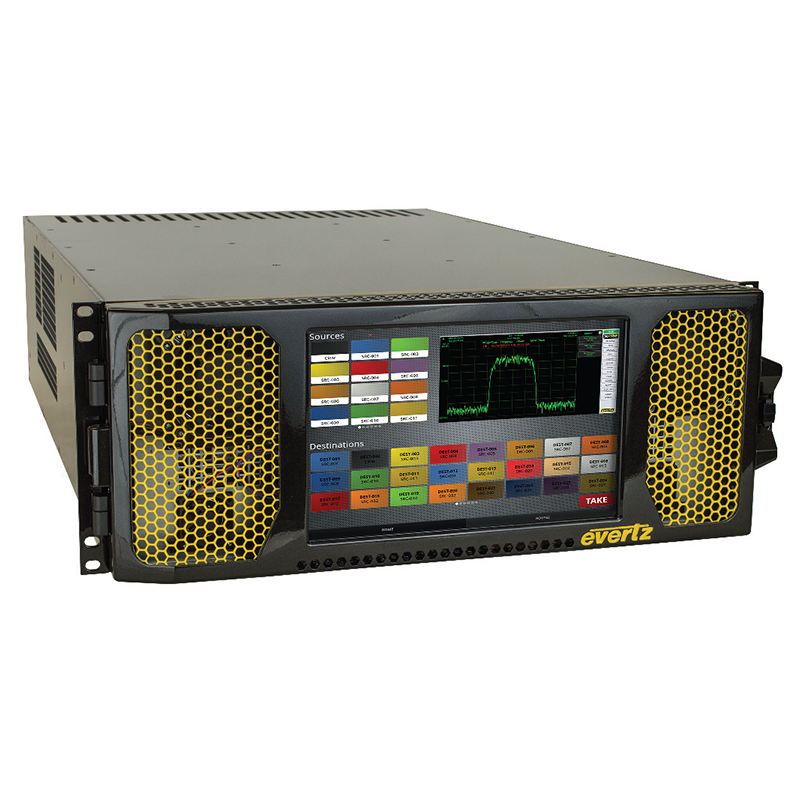

The Evertz XRF4 is a modular, ultra-high-density L-band and wideband RF routing system supporting matrix configurations from 8 × 8 to 64 × 128 in a compact 4RU chassis. Operating across the 850–2450 MHz frequency range, it provides flexible signal routing for satellite, broadcast, teleport, monitoring and large-scale RF distribution systems.

The XRF4 supports expansion in eight-port increments, adjustable input and output gain, multiple RF connector options and optional direct fiber inputs. Larger systems can scale to 512 × 1024 using additional frames with external passive splitting and combining.

A 10-inch integrated touchscreen and optional built-in spectrum analyzer provide local route control and signal monitoring. Remote management is available through Ethernet, web browser, SNMP, VistaLINK PRO and VUE-SW. Optional individually controlled LNB power supplies provide 13 or 18 VDC, 22 kHz tone, current monitoring and automatic recovery from short-circuit or overload conditions.

Specifications:

Product Type: Modular L-Band/Wideband RF Router
Manufacturer: Evertz
Product Series: XRF
Model: XRF4
Matrix Configuration: 8 × 8 to 64 × 128
Expansion Increment: 8 Inputs or Outputs
Expanded System Capacity: Up to 512 × 1024
Frequency Range: 850–2450 MHz
Standard Impedance: 75 Ohms
Optional Impedance: 50 Ohms
Standard RF Connectors: 75-Ohm BNC
Optional RF Connectors: 50-Ohm BNC, 50-Ohm SMA or 75-Ohm Type F
Input Gain Range: -15 to +15 dB
Output Gain Range: -30 to +30 dB
Gain Step Size: 0.5 dB
Frequency Response: ±1.5 dB typ.; ±2 dB Maximum
Frequency Response over Any 36 MHz: ±0.25 dB typ.; ±0.5 dB Maximum
Output-to-Output Isolation: Greater Than 65 dB
Input-to-Input Isolation: Greater Than 65 dB
Input-to-Output Isolation: Greater Than 60 dB
RF Input Power Range: -55 to -5 dBm
Maximum RF Output Power: -5 dBm
Input P1dB: 0 dBm
OIP3: Greater Than +12 dBm
Input and Output Return Loss: Greater Than 17 dB typ.; Greater Than 14 dB Minimum
Group Delay: Less Than 2 ns
Gain Tracking: ±2 dB
LNB Power: Optional, Individually Controlled per Input
LNB Voltage: 13 VDC, 18 VDC or Off
LNB Current: 400 mA per Port
LNB Protection: Active Short-Circuit and Overload Protection
22 kHz Tone: On or Off
Local Control: Integrated 10-Inch Touchscreen
Spectrum Analyzer: Optional Integrated Analyzer
Network Interface: Ethernet
Remote Control: Web Browser, SNMP and Quartz Protocol
Management Software: VistaLINK PRO SNMP NMS and VUE-SW
Modular Components: Hot-Swappable
Power Supplies: Four, Configured for 1+3 Redundancy
Power Requirements: 100–240 VAC, 50/60 Hz, Autoranging
Power Connectors: IEC 60320-1
Mechanical Format: 4RU Rackmount
Dimensions: 6.96 in. H × 18.96 in. W × 29.21 in. D

Available now at Esatcom Inc. Please contact us for configuration, pricing and lead time.
