Quintech NEXUS-M 8/16/32-Port 6 GHz RF Mesh Attenuator Matrix

Quintech NEXUS-M 8/16/32-Port 6 GHz RF Mesh Attenuator Matrix

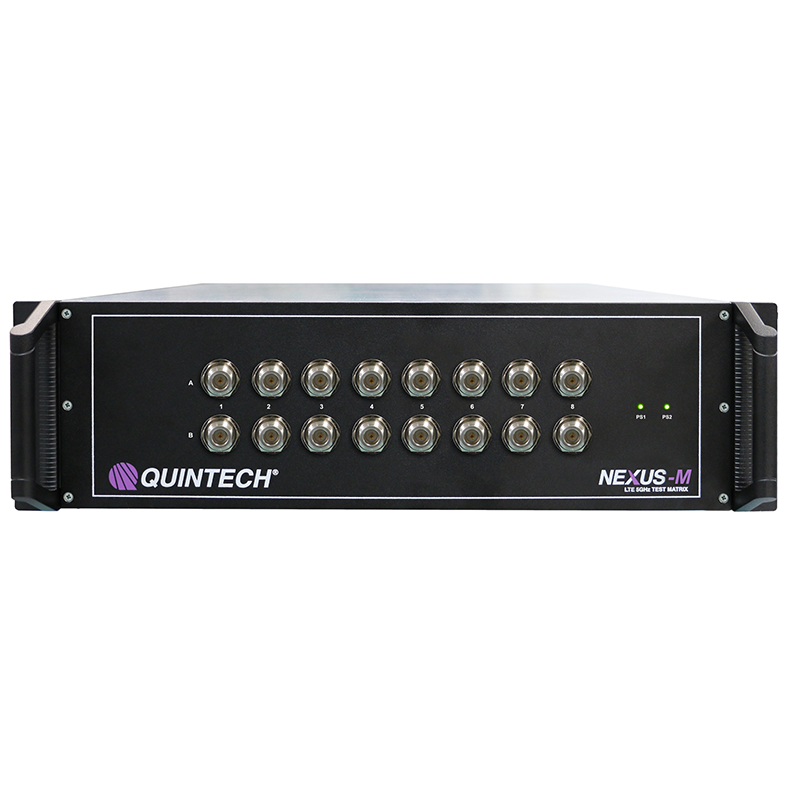

The Quintech NEXUS-M is a bidirectional RF mesh attenuator matrix in which any port can connect to any or all remaining ports. Available with 8, 16 or 32 ports, it supports automated wireless and network testing across the continuous 400 MHz–6 GHz frequency range.

Every connection includes an independently controlled programmable attenuator, allowing RF levels and path loss to be adjusted between individual network nodes. Solid-state switching provides repeatable millisecond reconfiguration for regression testing across multiple network topologies without manually changing cables or patch panels.

The NEXUS-M can create string, partial-mesh and full-mesh network configurations for UHF, LTE, Bluetooth, Wi-Fi, CAT-M, NB-IoT and GPS testing. Applications include over-the-air path-loss simulation, beam-hopping latency measurement, software-defined network testing and network-resiliency evaluation when adding or removing nodes.

Local operation is provided through a front-panel LCD and rotary joystick. Ethernet, TCP/IP, an API and the Q-LAAMP embedded web interface support remote control, test automation and laboratory resource management.

Specifications:

Product Type: Bidirectional RF Mesh Attenuator Matrix
Manufacturer: Quintech Electronics
Product Series: NEXUS
Model: NEXUS-M
Available Configurations: 8, 16 or 32 Ports
Routing Capability: Any Port to Any or All Remaining Ports
Frequency Range: 400 MHz–6 GHz
Supported Technologies: UHF, LTE, Bluetooth, Wi-Fi, CAT-M, NB-IoT and GPS
Matrix Architecture: Passive and Bidirectional
Network Topologies: String, Partial Mesh and Full Mesh
Switching Technology: Solid State
Impedance: 50 Ohms
RF Connector Options: N-Type Female or SMA Female
P1dB: +43 dBm
No-Damage Signal Level: +43 dBm
Fixed Attenuation, 400–700 MHz: 40 dB Maximum
Fixed Attenuation, 700–4000 MHz: 45 dB Maximum
Fixed Attenuation, 4000–6000 MHz: 50 dB Maximum
Variable Attenuation: 0–60 dB
Attenuation Step Size: 0.5 dB
Dynamic Range Between Connected Ports: 25 dB
On/Off Isolation: 70 dB, Normalized to 0 dB Attenuation
Return Loss, 400–700 MHz: 10 dB
Return Loss, 700–4000 MHz: 14 dB
Return Loss, 4000–6000 MHz: 10 dB
Local Control: Front-Panel 2.2-Inch LCD with Rotary Joystick
Remote Control: Ethernet and TCP/IP
Automation Interface: API Protocol
Management Software: Q-LAAMP Embedded Web GUI
Power Requirements: 100–240 VAC, 50/60 Hz
Certifications: FCC Part 15, CE, NRTL and TUV

Available now at Esatcom Inc. Please contact us for configuration, pricing and lead time.
