DEV 2194 2x1:8 or 1:16 L-Band Distribution Amplifier, 700-2300 MHz

DEV 2194/75 2x1:8 or 1:16 L-Band Distribution Amplifier, 700-2300 MHz

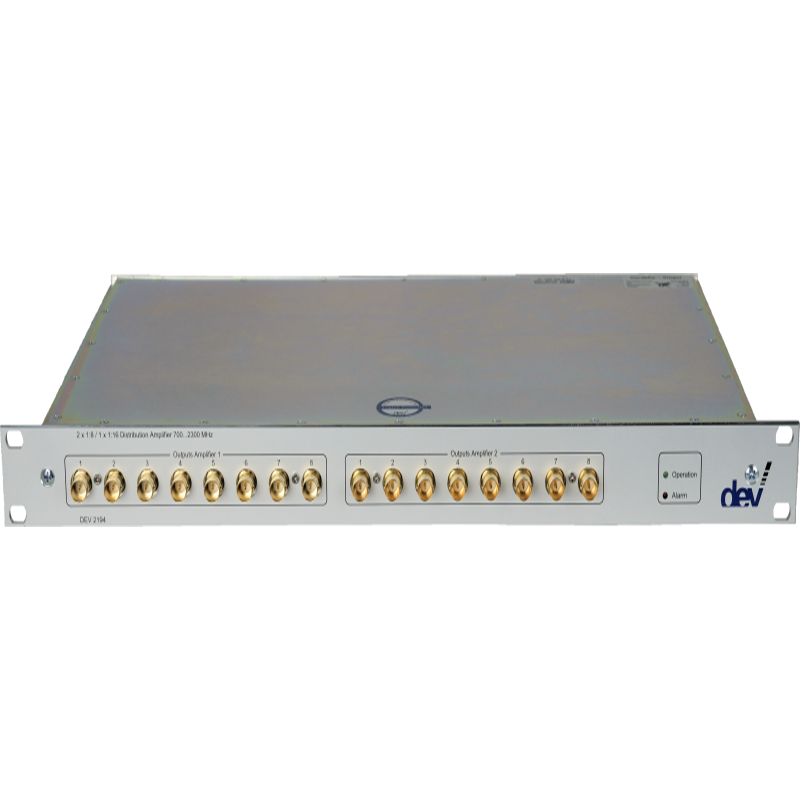

The DEV 2194/75 L-Band Distribution Amplifier provides selectable dual 1:8 or single 1:16 RF signal distribution across the 700-2300 MHz frequency range. An integrated 1:2 splitter allows the unit to operate as two independent 1:8 distribution amplifiers or as one cascaded 1:16 distribution amplifier.

Designed for satellite ground stations, teleports, broadcast facilities and professional SATCOM networks, the DEV 2194/75 features 75 Ohm F female inputs and 75 Ohm BNC female outputs. Adjustable gain, variable slope, LNB power, RF sensing and remote management provide flexible control and dependable L-band signal distribution in a compact 19-inch, 1 RU chassis.

Configuration: Selectable 2x1:8 or 1:16 distribution
Frequency Range: 700-2300 MHz
Number of Inputs: 2 in dual 1:8 mode; 1 in cascaded 1:16 mode
Number of Outputs: 16
Input Impedance and Connectors: 75 Ohm, precision F female
Output Impedance and Connectors: 75 Ohm, BNC female
Nominal Input Level: 85 dBµV
Return Loss: Greater than 14 dB
Gain Adjustment: 0-31 dB
Variable Slope: 0-8 dB
Full-Band Flatness: ±1.0 dB with optimum slope
36 MHz Flatness: ±0.3 dB
Output Port Isolation: Greater than 25 dB
Intermodulation Distortion: Less than -40 dBc
Group Delay: Less than 5 ns
Noise Figure: Less than 10 dB in 1:8 mode; less than 15 dB in 1:16 mode
50 Ohm Monitoring Ports: SMA female
75 Ohm Monitoring Ports: F female
LNB Power: 13/18 VDC, up to 350 mA per input
22 kHz Tone: Switchable
RF Sensing Threshold: Adjustable from below 0 dBm to above -50 dBm
Remote Management: Ethernet, SNMP and DEV Web Interface
Power Supply: 100-240 VAC
Power Consumption: Less than 40 VA
Chassis: 19-inch, 1 RU
Dimensions: 483 mm W x 44 mm H x approximately 285 mm D
Weight: Approximately 6 kg

Key Features

• Selectable dual 1:8 or single 1:16 distribution

• Integrated 1:2 splitter for flexible operating modes

• Wide 700-2300 MHz frequency coverage

• 75 Ohm F female inputs

• Sixteen 75 Ohm BNC female outputs

• Independently adjustable amplifier gain

• Variable slope adjustment for both amplifiers

• 50 Ohm and 75 Ohm monitoring outputs

• Switchable 13/18 VDC LNB power

• Switchable 22 kHz tone

• LNB supply-current monitoring with adjustable alarms

• RF sensing with adjustable threshold

• Ethernet connectivity with SNMP support

• Remote control through the DEV Web Interface

• Signal recording and data backup

• Compact 19-inch, 1 RU rack-mount chassis
