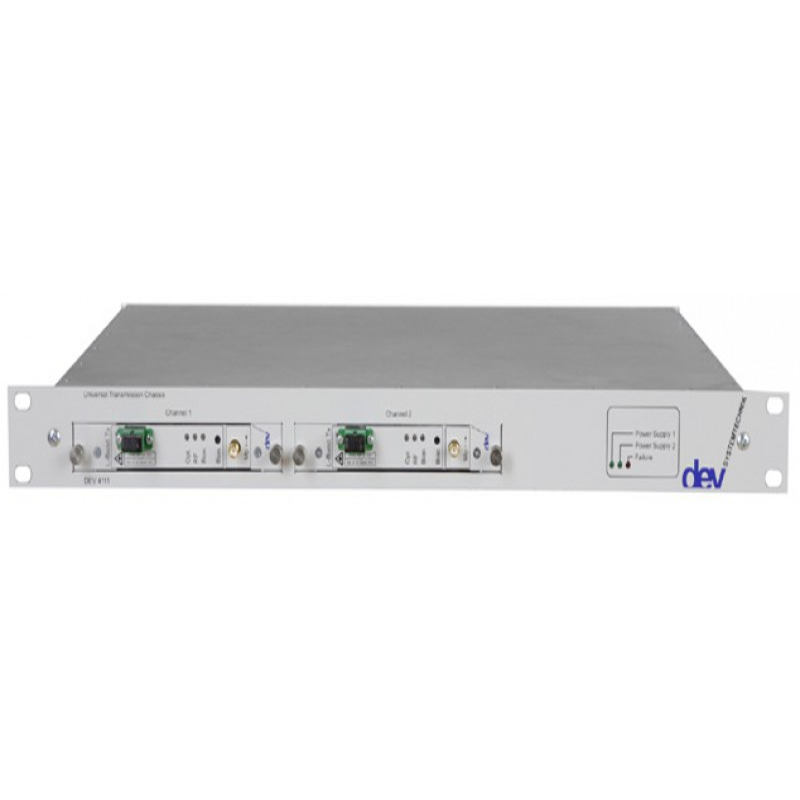

DEV 4111 Intelligent Universal RF over Fiber Chassis, 2 Slots

DEV 4111 Intelligent Universal RF over Fiber Chassis, 2 Slots

The DEV 4111 Intelligent Universal Optribution Chassis is a compact 19-inch, 1 RU platform that integrates RF over fiber transmission, L-band amplification, signal distribution and redundancy. Its two front-panel slots accept compatible DEV Optribution optical transmitter, optical receiver or managed amplifier modules.

The chassis can be configured as a standalone optical link, an L-band line amplifier, a 1:8 or 1:16 distribution system, a 1+1 redundant RF over fiber link or a redundant amplifier system. Available 50 Ohm SMA and 75 Ohm precision F female interfaces support a wide range of satellite, broadcast and RF distribution applications.

When equipped with the CPU/controller configuration, the DEV 4111 supports signal monitoring, recording and configuration backup through the DEV Web Interface and SNMP. Redundant AC power inputs and optional automatic switchback or main/backup swapping provide enhanced availability.

Product Type: Universal RF over fiber and L-band distribution chassis
Module Capacity: Two front-panel slots
Supported Modules: Optical transmitters, optical receivers and L-band amplifiers
RF Distribution Options: 1:8 or 1:16
Redundancy Options: 1+1 optical-link or redundant amplifier
RF Impedance Options: 50 Ohm or 75 Ohm
RF Connector Options: SMA or precision F female
Standard Network Interface: Ethernet
Network Connector: RJ-45
Remote Management: DEV Web Interface and SNMP with CPU/controller
Power Supply: Redundant 100-240 VAC inputs
Power Consumption: Less than 80 VA
Chassis: 19-inch, 1 RU
Dimensions: 483 mm W x 44 mm H x approximately 360 mm D
Empty Chassis Weight: Approximately 5 kg
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

L-Band Amplifier Specifications

• Available Modules: DEV 11-0096 with one output or DEV 11-0081 with two outputs
• Frequency Range: 700-2300 MHz
• Nominal Input Level: -10 dBm at 50 Ohm or 85 dBµV at 75 Ohm
• RF Damage Level: +10 dBm at 50 Ohm or 120 dBµV at 75 Ohm
• Return Loss: Greater than 14 dB
• Gain Adjustment: 0-31 dB
• Variable Slope: 0-8 dB
• Group Delay: Less than 5 ns
• Noise Figure: Less than 10 dB
• Monitor-Port Interface: 50 Ohm SMA female
• Monitor-Port Return Loss: Greater than 18 dB

LNB Power and RF Sensing

• LNB Power: Up to 350 mA
• Voltage Selection: 13 or 18 VDC
• Tone Selection: 0 or 22 kHz
• Upper Current Alarm: Adjustable up to 330 mA
• Lower Current Alarm: Adjustable down to 50 mA
• RF-Sensing Threshold: Adjustable from -50 to 0 dBm
• Threshold Accuracy: ±3 dB
• Threshold Repeatability: Less than 0.5 dB
• Alarm Indication: Front-panel LED and remote interface

RF Distribution Specifications

• Available Configurations: 1:8 or 1:16
• Frequency Range: 700-2300 MHz
• Impedance Options: 50 Ohm or 75 Ohm
• Connector Options: SMA or precision F female
• Full-Band Flatness: ±1.0 dB
• 36 MHz Flatness: ±0.3 dB
• Intermodulation Distortion: Less than -40 dBc at -10 dBm
• Maximum Capacity: Two 1:8 distributions or one 1:16 distribution

Cabling Options

• 50 Ohm SMA: DC-3000 MHz input or output cabling

• 75 Ohm F: 10-1006 MHz input or output cabling

• 75 Ohm F: DC and 700-2500 MHz input or output cabling

Redundancy Options

1+1 Optical-Link Redundancy

• One 1+1 transmitter or receiver redundancy system per chassis

• Available for 10 MHz, 47-1006 MHz or 950-2150 MHz links

• Supports 50 Ohm SMA or 75 Ohm F female interfaces

• Link gain decreases by approximately 5 dB

Redundant Amplifier Configurations

• Dedicated input for each main and backup amplifier

• Integrated 1:2 input splitter configuration

• Integrated 1:2 switched-input configuration

• Available with 50 Ohm SMA or 75 Ohm F female interfaces

• Supports automatic redundancy switching based on RF sensing

• Designed to eliminate a single amplifier point of failure

Available Options

• CPU/Controller: Enables monitoring and control through the DEV Web Interface and SNMP

• 1:8 Distribution: Available with 50 Ohm SMA or 75 Ohm F connectors

• 1:16 Distribution: Available with 50 Ohm SMA or 75 Ohm F connectors

• 1+1 Optical Redundancy: Available for transmitter or receiver links

• Redundant Distribution Amplifier: Dual-input, split-input or switched-input configurations

• Automatic Switchback: Returns operation to the restored main path

• Main/Backup Swap: Dynamically changes the main and backup assignments

• RF Cabling: Multiple frequency-range, impedance and connector configurations

• Blanking Plate: Covers an unused module slot

Key Features

• Two-module universal chassis in 1 RU

• Supports optical transmitter and receiver modules

• Supports managed L-band amplifier modules

• Configurable as an RF over fiber link or line amplifier

• 1:8 and 1:16 RF distribution options

• 1+1 optical transmitter or receiver redundancy

• Redundant amplifier configurations

• Adjustable amplifier gain and slope

• Integrated RF sensing

• LNB power with current monitoring

• Dedicated RF monitoring output

• 50 Ohm and 75 Ohm interfaces

• Automatic switchback and main/backup swapping

• Signal monitoring, recording and data backup with CPU

• DEV Web Interface and SNMP with CPU

• Redundant AC power supplies
