DEV 2232/N, 2242/N & 2252/N 8:1 L-Band Combiners

DEV 2232/N, 2242/N & 2252/N 8:1 L-Band Combiners

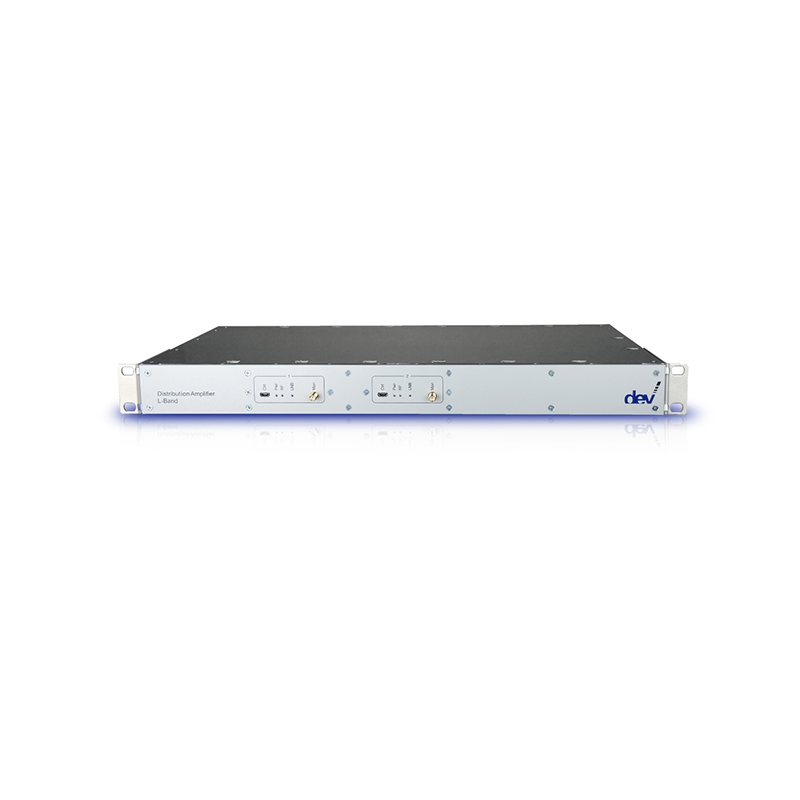

The DEV 22×2 Series provides active 8:1 L-band signal combining from 800 to 2450 MHz with 50 Ohm N female RF connectors. The DEV 2232/N, DEV 2242/N and DEV 2252/N combine eight input signals into one output within a compact 19-inch, 1 RU chassis.

All three models include DC-blocked inputs, RF sensing, an SMA monitoring port and redundant AC power supplies. The DEV 2232/N provides adjustable RF-sensing thresholds and front-panel alarm indication for straightforward local operation.

The managed DEV 2242/N and redundant DEV 2252/N add adjustable gain, variable slope, Ethernet, SNMP and the DEV Web Interface. The DEV 2252/N also incorporates a redundant amplifier to improve availability in mission-critical satellite and broadcast systems.

Product Type: Active 8:1 L-band RF combiner
Available Models: DEV 2232/N, DEV 2242/N and DEV 2252/N
Number of Inputs: Eight
Number of Outputs: One
Frequency Range: 800-2450 MHz
RF Impedance: 50 Ohm
RF Connectors: N female
Input Ports: DC blocked
Damage Level: +10 dBm
Nominal Input Level: -10 dBm aggregate power
Return Loss: Greater than 14 dB
DEV 2242/N Gain Adjustment: -15 to +11 dB, ±0.5 dB
DEV 2252/N Gain Adjustment: -15 to +5 dB, ±0.5 dB
Variable Slope: 0-5 dB on DEV 2242/N and DEV 2252/N
Insertion Loss: 0 ±1.5 dB
Full-Band Flatness: ±1 dB
36 MHz Flatness: ±0.25 dB
Input-Port Isolation: Greater than 25 dB
Intermodulation Distortion: Less than -40 dBc
Group-Delay Distortion: Less than 0.5 ns within 36 MHz
Noise Figure: Less than 25 dB
Monitoring Connector: 50 Ohm SMA female
Monitoring Level: Input level minus 32 ±3 dB
RF-Sensing Threshold: Adjustable from -50 to 0 dBm
Threshold Accuracy: ±3 dB
Threshold Repeatability: Less than 0.5 dB
Remote Interface: Ethernet, RJ45 on DEV 2242/N and DEV 2252/N
Remote Management: DEV Web Interface and SNMP
Power Supply: Redundant 100-240 VAC inputs
Power Consumption: Less than 35 VA
Chassis: 19-inch, 1 RU
Dimensions: 483 mm W x 44 mm H x typ. 260 mm D
Weight: Typ. 2 kg
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

Available Models

• DEV 2232/N: Active 8:1 L-band combiner with RF sensing, locally adjustable thresholds and LED

   alarm indication

• DEV 2242/N: Managed 8:1 combining amplifier with adjustable gain, variable slope, Ethernet,

   SNMP and DEV Web Interface

• DEV 2252/N: Redundant 8:1 combining amplifier with adjustable gain, variable slope, remote

   management and amplifier redundancy

Monitoring and Control

• The DEV 2232/N RF-sensing threshold is configured through a standard terminal application

   using the front USB interface.

• The DEV 2242/N and DEV 2252/N thresholds are configurable through the DEV Web Interface or

         SNMP.

• All models provide local LED alarm indication.

• The managed models additionally report alarms through the web interface and SNMP.

Available Option

Signal Recording: Adds visualization and external storage of amplifier signal data through the DEV Web Interface on the DEV 2242/N and DEV 2252/N

Key Features

• Combines eight L-band inputs into one output

• Extended 800-2450 MHz frequency coverage

• 50 Ohm N female RF connectors

• DC-blocked input ports

• Integrated RF sensing on every model

• Adjustable -50 to 0 dBm sensing threshold

• Front-panel LED alarm indication

• Adjustable gain on DEV 2242/N and DEV 2252/N

• 0-5 dB variable slope

• Redundant amplifier on DEV 2252/N

• Dedicated SMA monitoring port

• Ethernet and SNMP management

• DEV Web Interface

• Optional signal recording

• Redundant AC power supplies

• Compact 19-inch, 1 RU chassis
