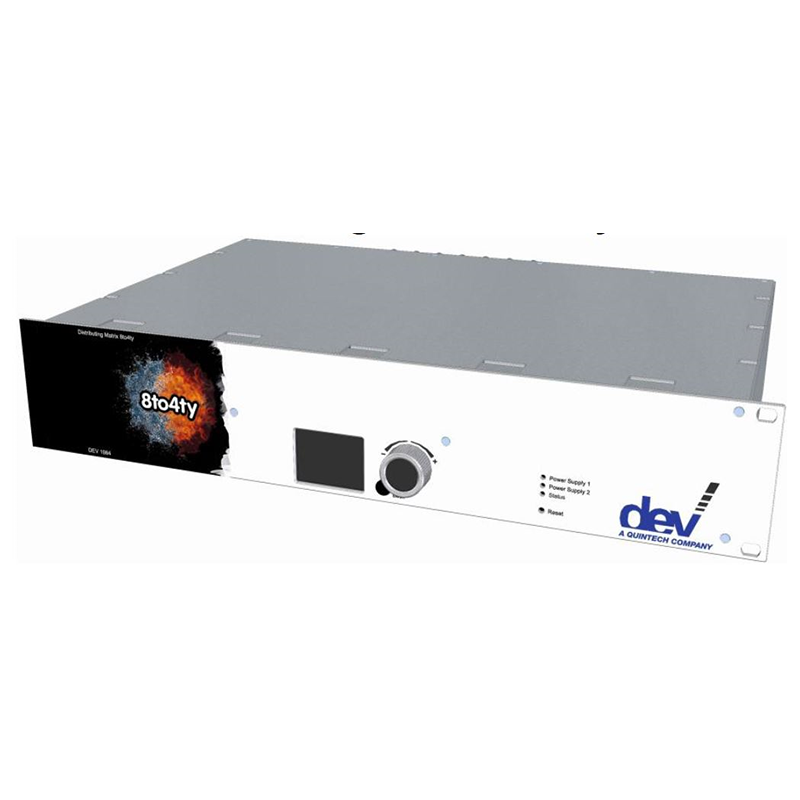

The DEV 1984 ARCHIMEDES 8to40ty L-Band Matrix Switch provides flexible any-input-to-any-output signal routing for up to eight inputs and 40 outputs within a compact 19-inch, 2 RU chassis. It is designed for satellite ground stations, teleports, broadcast facilities and other RF systems requiring reliable distribution of L-band signals to numerous destinations.

The DEV 1984 operates across the extended 850-2450 MHz frequency range. Standard systems use 75 Ohm precision F female connectors, while modular input and output options support 50 Ohm SMA, 50/75 Ohm BNC and single-mode optical inputs. The field-upgradeable DEV 1984/8x40U can be expanded from 8x20 to 8x40 as system requirements grow.

Adjustable gain, RF sensing, a graphical local interface, redundant power supplies, SNMP and the DEV Web Interface provide comprehensive system control. Optional capabilities include variable slope, LNB powering, a dedicated monitoring port, an integrated spectrum analyzer, secure path locking and automatic input-channel redundancy.

Product Type: Managed L-band distributing matrix switch
Frequency Range: 850-2450 MHz
Maximum Capacity: 8 inputs x 40 outputs
Base Capacity: 8 inputs x 20 outputs
Reduced Configurations: Available in four-channel increments
Standard Impedance: 75 Ohm
Standard Connectors: Precision F female
Optional RF Interfaces: 50 Ohm SMA, 50 Ohm BNC or 75 Ohm BNC female
Optional Optical Inputs: LC/APC or SC/APC
Operational Input Level: Less than -5 dBm
Damage Level: +25 dBm
Return Loss: Greater than 14 dB
Variable Gain: -20 to +30 dB
Optional Variable Slope: 0-5 dB
Full-Band Flatness: ±3.0 dB
36 MHz Flatness: ±1.0 dB
Input-to-Input Isolation: Typ. 60 dB
Output-to-Output Isolation: Typ. 60 dB
Input-to-Output Crosstalk: Typ. 60 dB
Off-State Isolation: Typ. 80 dB
Intermodulation Distortion: Less than -40 dBc
Group Delay Distortion: Less than 2 ns within any 36 MHz
Noise Figure: Less than 17 dB
Output P1dB: 0 dBm
Switching Technology: Semiconductor
Local Interface: 2.2-inch full-color display and rotary control
Remote Management: Ethernet, SNMP and DEV Web Interface
Power Supply: Redundant 100-240 VAC inputs
Maximum Power Consumption: 100 VA
Chassis: 19-inch, 2 RU
Dimensions: 483 mm W x 89 mm H x approximately 300 mm D
Weight: Approximately 10 kg
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

Available Models

• DEV 1984/8x20: 8-input, 20-output L-band distributing matrix

• DEV 1984/8x40U: Supplied as an 8x20 matrix and field-upgradeable to 8x40

• Reduced input or output configurations are available in four-channel increments

Optical Input Specifications

• Fiber Type: Single-mode 9/125 µm
• Wavelength: 1100-1650 nm
• Standard Optical Input Level: -22 to 0 dBm
• High-Power Optical Input Level: -22 to +3 dBm
• Optical Damage Level: +10 dBm
• Connector Options: LC/APC or SC/APC

LNB Power Option

• Capacity: Four RF inputs per option
• LNB Power: Up to 350 mA per input
• Voltage Selection: 13 or 18 VDC
• Tone Selection: 0 or 22 kHz
• Upper Alarm Level: Adjustable up to 330 mA
• Lower Alarm Level: Adjustable down to 50 mA
• Available RF Interfaces: 50 Ohm SMA, 50 Ohm BNC, 75 Ohm BNC or 75 Ohm F female

Available Options

• 50 Ohm SMA Modules: Four-channel RF input or output modules

• 50 Ohm BNC Modules: Four-channel RF input or output modules

• 75 Ohm BNC Modules: Four-channel RF input or output modules

• Optical Inputs: Standard or high-power LC/APC and SC/APC input modules

• LNB Powering: Adds switchable 13/18 VDC and 0/22 kHz control to four RF inputs

• Variable Slope: Adds 0-5 dB slope adjustment across all signal paths

• Monitoring Port: Adds an independently switchable 50 Ohm SMA female output

• Integrated Spectrum Analyzer: Enables spectrum monitoring through the DEV Web Interface

• Secure Lock Operation: Prevents unauthorized interruption of protected signal paths

• Input-Channel Redundancy: Automatically transfers signal routing to an assigned backup input following RF loss

• Reduced Channel Count: Supplies four fewer inputs or outputs while retaining field-upgrade capability

Key Features

• Up to 8x40 L-band signal routing in 2 RU

• Any-input-to-any-output distributing architecture

• Extended 850-2450 MHz frequency coverage

• Field-upgradeable output capacity

• Electrical and optical input options

• 50 Ohm and 75 Ohm RF interfaces

• SMA, BNC and precision F female connectors

• Hot-pluggable input and output modules

• Adjustable manual or automatic gain control

• Optional variable slope

• Integrated RF sensing

• Optional independently switchable monitoring output

• Optional LNB power with current monitoring

• Optional automatic input-channel redundancy

• Optional integrated spectrum analyzer

• Secure multi-user path locking

• Graphical local user interface

• Redundant AC power supplies

• Signal recording and configuration backup

• Ethernet, SNMP and DEV Web Interface
