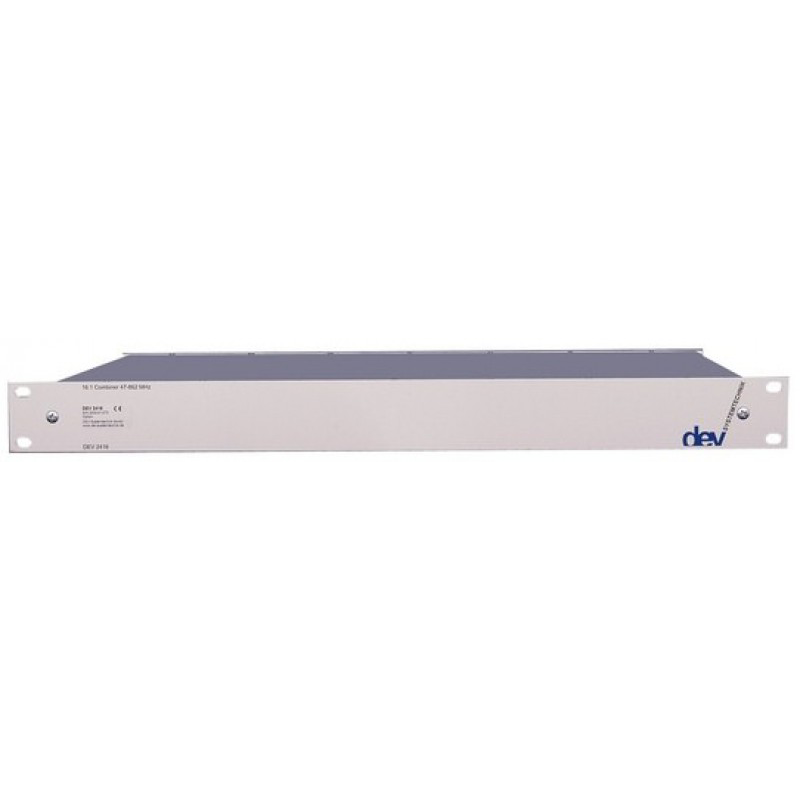

The DEV 24xx Series comprises high-quality passive CATV-band combiners and splitters for cable television headends, broadband distribution networks and professional RF installations. The series provides configurations for combining or splitting 4, 8, 16, 24 or 32 signals, along with multi-channel configurations for high-density systems.

Operating from 10 to 1006 MHz, DEV 24xx combiners and splitters provide low slope, high port-to-port isolation and minimal insertion-loss variation between signal paths. All models feature 75 Ohm precision F female connectors and fit into a compact 19-inch, 1 RU rack-mount chassis. Selected models also include an RF monitoring port.

Product Type: Passive CATV-band combiners and splitters
Frequency Range: 10-1006 MHz
Available Configurations: 4, 8, 16, 24 or 32 signal paths
Impedance: 75 Ohm
Connectors: Precision F female
Damage Level: 140 dBµV
Flatness within Any 8 MHz: ±0.1 dB
Monitoring Port: Available on selected models
Chassis: 19-inch, 1 RU
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

Passive Combiner Models

• DEV 2404: 4:1 passive combiner

• DEV 2408: 8:1 passive combiner

• DEV 2416: 16:1 passive combiner

• DEV 2424: 24:1 passive combiner

• DEV 2428: Dual 8:1 passive combiner

• DEV 2432: 32:1 passive combiner

• DEV 2461: Sixteen 2:1 passive combiners

• DEV 2462: Eight 4:1 passive combiners

• DEV 2463: Four 8:1 passive combiners

• DEV 2465: Six 4:1 passive combiners

Passive Splitter Models

• DEV 2405: 1:4 passive splitter

• DEV 2409: 1:8 passive splitter

• DEV 2417: 1:16 passive splitter

• DEV 2441: Sixteen 1:2 passive splitters

• DEV 2442: Eight 1:4 passive splitters

• DEV 2443: Four 1:8 passive splitters

Key Features

• Passive CATV-band signal combining and splitting

• Wide 10-1006 MHz frequency coverage

• Low slope for consistent signal quality

• High isolation between equivalent ports

• Minimal insertion-loss variation between paths

• Configurations supporting up to 32 signals

• High-density multi-combiner and multi-splitter models

• RF monitoring port on selected configurations

• 75 Ohm precision F female connectors

• Compact 19-inch, 1 RU rack-mount design

• Designed for cable television headends and broadband RF networks
