DEV 21x2 1:8 L-Band Splitters and Distribution Amplifiers, 800-2450 MHz

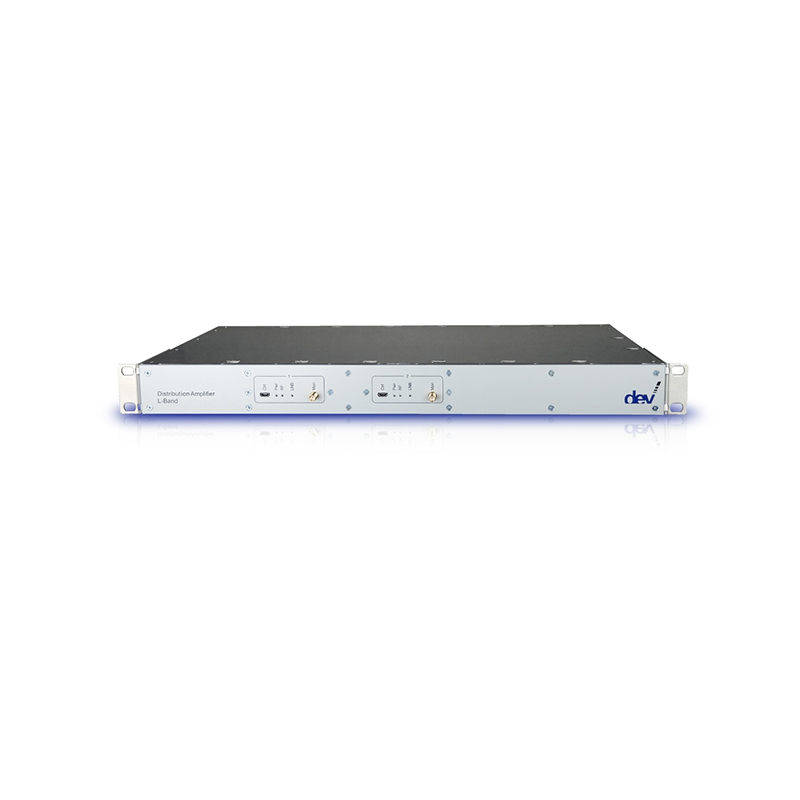

DEV 21x2/N 1:8 L-Band Splitters and Distribution Amplifiers, 800-2450 MHz

The DEV 21x2/N Series includes 1:8 active L-band splitters and distribution amplifiers designed for satellite ground stations, teleports, broadcast facilities and professional RF distribution networks. Each model distributes one input to eight outputs across the 800-2450 MHz frequency range using 50 Ohm N female connectors.

Available models include the DEV 2132/N active splitter, DEV 2142/N managed distribution amplifier and DEV 2152/N redundant distribution amplifier. All models provide LNB power, RF sensing, a monitoring output and redundant power supplies in a compact 19-inch, 1 RU chassis. Managed models add variable gain, variable slope, SNMP control, the DEV Web Interface and optional signal recording.

Configuration: 1 input to 8 outputs
Frequency Range: 800-2450 MHz
Impedance: 50 Ohm
RF Connectors: N female
Nominal Input Level: -10 dBm
Return Loss: Greater than 14 dB
Insertion Loss: 0 ±1.5 dB
Full-Band Flatness: ±1.0 dB
36 MHz Flatness: ±0.25 dB
Output Port Isolation: Greater than 25 dB
Intermodulation Distortion: Less than -40 dBc
Group Delay Distortion: Less than 0.5 ns within any 36 MHz
Monitoring Output: 50 Ohm SMA female
LNB Power: 13/18 VDC, up to 450 mA
22 kHz Tone: Switchable
RF Sensing Threshold: Adjustable from below 0 dBm to above -50 dBm
Remote Management: Ethernet, SNMP and DEV Web Interface on managed models
Power Supply: Redundant 100-240 VAC inputs
Power Consumption: Less than 35 VA
Chassis: 19-inch, 1 RU
Dimensions: 483 mm W x 44 mm H x approximately 260 mm D
Weight: Approximately 2 kg

Available Models

• DEV 2132/N: 1:8 active L-band splitter with LNB power, current monitoring, RF sensing and USB-based configuration

• DEV 2142/N: 1:8 managed L-band distribution amplifier with variable gain, variable slope, SNMP and web control

• DEV 2152/N: 1:8 redundant L-band distribution amplifier with variable gain, variable slope, SNMP, web control and a redundant amplifier

Model-Specific Performance

DEV 2132/N
Amplifier Gain Adjustment: Not applicable
Variable Slope: Not applicable
Noise Figure: Less than 13 dB

DEV 2142/N
Gain Adjustment: -15 to +11 dB, ±0.5 dB
Variable Slope: 0-5 dB
Noise Figure: Less than 13 dB

DEV 2152/N
Gain Adjustment: -5 to +5 dB, ±0.5 dB
Variable Slope: 0-5 dB
Noise Figure: Less than 15 dB
Amplifier Redundancy: Included

Key Features

• One L-band input distributed to eight outputs

• Wide 800-2450 MHz frequency coverage

• 50 Ohm N female RF connectors

• Dedicated 50 Ohm SMA monitoring output

• LNB power with current monitoring

• Switchable 13/18 VDC and 22 kHz tone

• RF sensing with adjustable alarm threshold

• Variable gain on DEV 2142/N and DEV 2152/N

• Variable slope on DEV 2142/N and DEV 2152/N

• Ethernet, SNMP and DEV Web Interface on managed models

• Optional signal recording for DEV 2142/N and DEV 2152/N

• Redundant amplifier in the DEV 2152/N

• Redundant power supplies across the series

• Compact 19-inch, 1 RU rack-mount chassis
