DEV 213x Active L-Band Splitters, 800-2450 MHz

DEV 213x Active L-Band Splitters, 800-2450 MHz

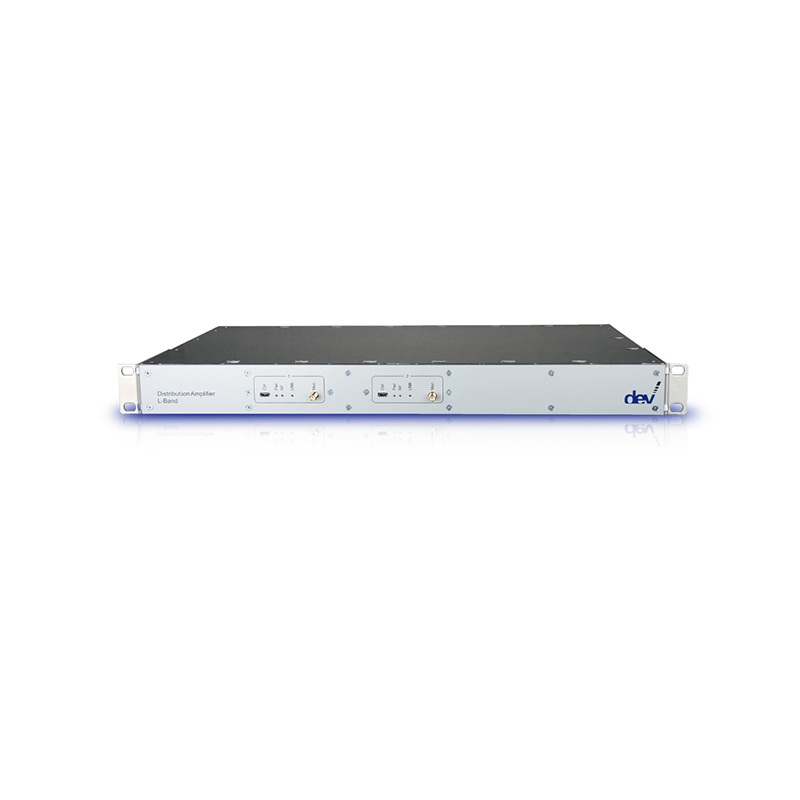

The DEV 213x Series Active L-Band Splitters provide reliable one-to-eight, dual one-to-eight or one-to-sixteen RF signal distribution for satellite ground stations, teleports, broadcast facilities and professional L-band networks. Available models include the DEV 2132, DEV 2133 and DEV 2135.

Operating from 800 to 2450 MHz, the DEV 213x Series supports 50 Ohm, 75 Ohm and mixed-impedance configurations. SMA, BNC and precision F female connectors can be selected independently for the inputs and each group of eight outputs. Integrated LNB power, current monitoring, RF sensing, alarm indication, monitoring outputs and redundant power supplies ensure dependable operation in a compact 19-inch, 1 RU chassis.

Product Type: Active L-band splitters
Frequency Range: 800-2450 MHz
Available Configurations: 1:8, dual 1:8 and 1:16
Impedance: 50 Ohm, 75 Ohm or mixed impedance
Available Connectors: SMA female, BNC female or precision F female
Nominal Input Level: -10 dBm
Return Loss: Greater than 14 dB
Insertion Loss: 0 ±1.5 dB
Full-Band Flatness: ±1.0 dB
36 MHz Flatness: ±0.25 dB
Output Port Isolation: Greater than 25 dB
Intermodulation Distortion: Less than -40 dBc
Group Delay Distortion: Less than 0.5 ns within any 36 MHz
Noise Figure: Less than 13 dB
Monitoring Outputs: 50 Ohm SMA female
LNB Power: 13/18 VDC, up to 450 mA per channel
22 kHz Tone: Switchable
RF Sensing Threshold: Adjustable from below 0 dBm to above -50 dBm
Configuration Interface: Front-panel USB
Alarm Indication: LED
Power Supply: Redundant 100-240 VAC inputs
Power Consumption: Less than 35 VA
Chassis: 19-inch, 1 RU
Dimensions: 483 mm W x 44 mm H x approximately 260 mm D
Weight: Approximately 2 kg

Available Models

DEV 2132: 1:8 active L-band splitter with one input and eight outputs

DEV 2133: Dual 1:8 active L-band splitter with two inputs and 16 total outputs

DEV 2135: 1:16 active L-band splitter with one input and 16 outputs

Connector and Impedance Options

vSin50: 50 Ohm SMA female input

vSin50B: 50 Ohm BNC female input

vSin75: 75 Ohm precision F female input

vSin75B: 75 Ohm BNC female input

vSout50: Eight 50 Ohm SMA female outputs

vSout50B: Eight 50 Ohm BNC female outputs

vSout75: Eight 75 Ohm precision F female outputs

vSout75B: Eight 75 Ohm BNC female outputs

Key Features

• Active L-band signal distribution from 800 to 2450 MHz

• 1:8, dual 1:8 and 1:16 configurations

• 50 Ohm, 75 Ohm and mixed-impedance configurations

• Independently selectable input and output connectors

• SMA, BNC and precision F female connector options

• Dedicated RF monitoring output for each channel

• Integrated 13/18 VDC LNB power

• Switchable 22 kHz tone

• LNB supply-current monitoring

• Adjustable upper and lower current alarm thresholds

• RF sensing with adjustable threshold

• Front-panel USB configuration

• LED alarm indication

• Redundant power supplies

• Compact 19-inch, 1 RU rack-mount chassis
