DEV 216x Essentials Active L-Band Splitters, 500-2300 MHz

DEV 216x Essentials Active L-Band Splitters, 500-2300 MHz

The DEV 216x Series Essentials Active L-Band Splitters provide cost-effective RF signal distribution for satellite ground stations, broadcast facilities and other professional L-band systems. The series includes 1:4, 1:8 and 1:16 configurations operating across the wide 500-2300 MHz frequency range.

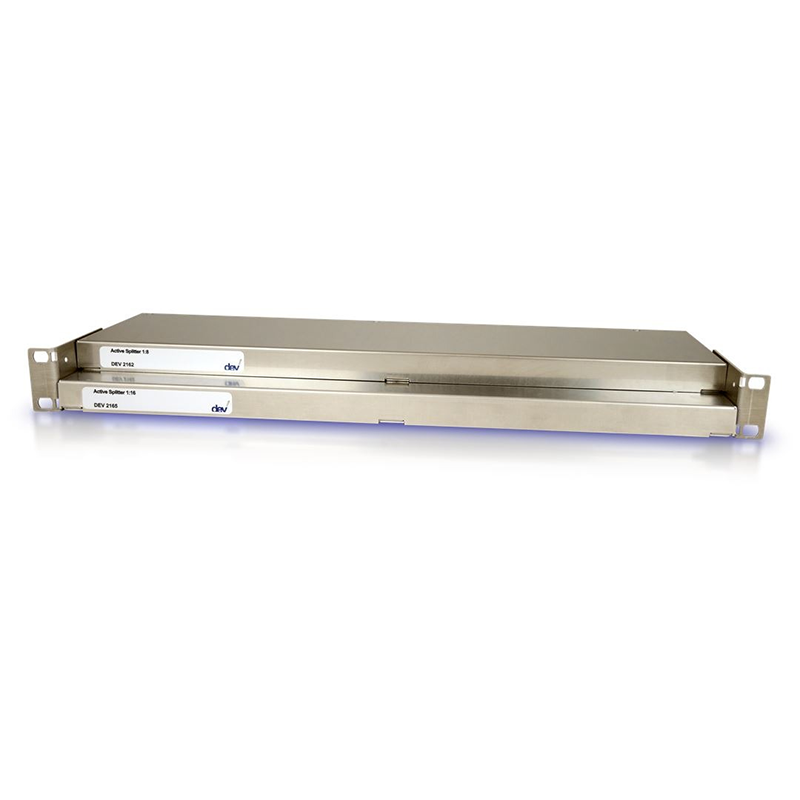

Each splitter features 75 Ohm precision F female connectors and switchable LNB power. Optional DC and 10 MHz pass-through allows compatible receivers or demodulators to power and control the connected LNB through output port 1. The compact 0.5 RU chassis can accommodate two 1:4 or two 1:8 splitters, enabling two DEV 216x units to fit within a single 1 RU rack space.

DEV Essentials models maintain professional RF transmission performance while omitting advanced functions such as redundant power supplies, monitoring ports, RF sensing and alarm management.

Product Type: Active L-band splitters
Frequency Range: 500-2300 MHz
Available Configurations: 1:4, 1:8 and 1:16
Impedance: 75 Ohm
Connectors: Precision F female
Nominal Input Level: 100 dBµV
Return Loss: Greater than 14 dB
Full-Band Flatness: ±1.5 dB
36 MHz Flatness: ±0.3 dB
Output Port Isolation: Greater than 25 dB from 950-2150 MHz
Intermodulation Performance: Greater than 40 dBc at 2000 MHz
Noise Figure: Less than 8 dB
Standard Outputs: DC blocked
Optional Pass-Through: DC and 10 MHz through output port 1
LNB Power: 17.5 ±0.5 VDC, up to 350 mA per input
Auto LNB Powering: 13/18 VDC from receiver or demodulator with applicable option
Power Supply: External 100-240 VAC power supply
Power Consumption: Typ. less than 12 VA plus LNB power
Chassis: 19-inch, 0.5 RU
Dimensions: 483 mm W x 22 mm H x approximately 135 mm D
Weight: Approximately 2 kg plus 0.3 kg power supply

Available Models

DEV 2161: 1:4 Essentials active L-band splitter

DEV 2162: 1:8 Essentials active L-band splitter

DEV 2165: 1:16 Essentials active L-band splitter

Available Options

Option P.LnbOn: Activates LNB power automatically at power-up

Option 30: Adds a second 1:4 active splitter to the DEV 2161

Option 31: Adds a second 1:8 active splitter to the DEV 2162

Option 31DCp: Adds a second 1:8 active splitter with DC and 10 MHz pass-through

Option DCp: Adds DC and 10 MHz pass-through from output port 1 to the common port

Key Features

• Cost-effective active L-band signal distribution

• 1:4, 1:8 and 1:16 splitter configurations

• Wide 500-2300 MHz frequency coverage

• 75 Ohm precision F female connectors

• Switchable LNB power for each splitter

• Optional automatic LNB powering from a receiver or demodulator

• Optional DC and 10 MHz pass-through

• Up to two 1:4 or two 1:8 splitters in one chassis

• External universal AC power supply

• Detachable rack-mounting brackets

• Two DEV 216x units can occupy a single 1 RU rack space

• Compact 19-inch, 0.5 RU design
