DEV 2183 Dual 1:8 L-Band Distribution Amplifier, 950-2150 MHz

DEV 2183 Dual 1:8 L-Band Distribution Amplifier, 950-2150 MHz

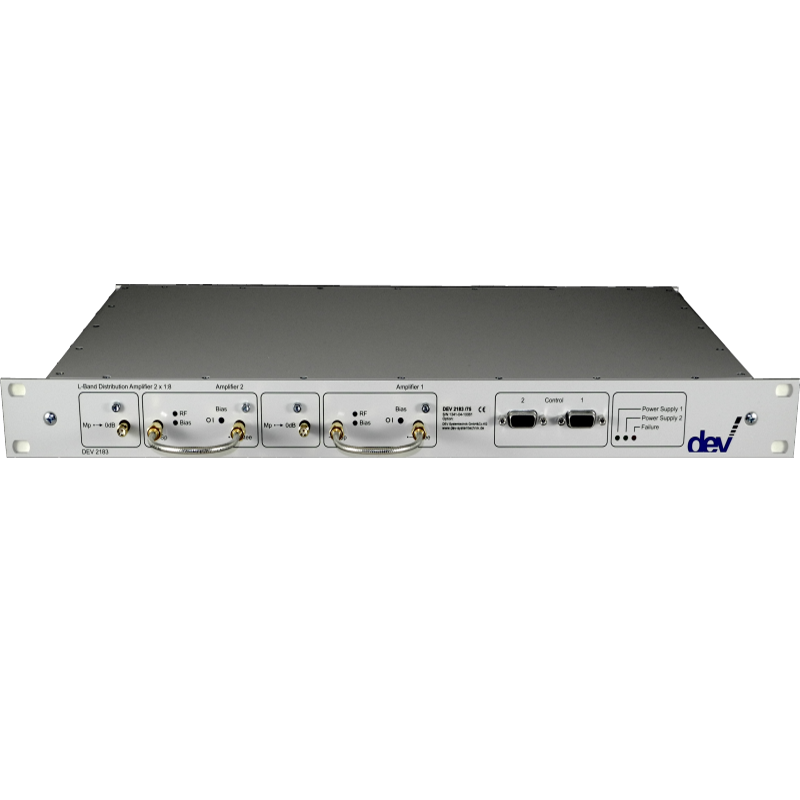

The DEV 2183 Dual 1:8 L-Band Distribution Amplifier incorporates two independent 1:8 distribution channels in a compact 19-inch, 1 RU chassis. Each L-band input is distributed to eight RF outputs, providing a total capacity of two inputs and 16 outputs for satellite ground stations, teleports, broadcast facilities and mission-critical SATCOM networks.

Operating across 950-2150 MHz, the DEV 2183 supports 50 Ohm SMA, 75 Ohm precision F and mixed-impedance configurations. Each channel includes LNB power and current monitoring, RF sensing, adjustable alarm thresholds and a dedicated monitoring output. Redundant AC power supplies enhance system availability.

Configuration: Two independent 1:8 channels
Number of Inputs: 2
Number of Outputs: 16 total; 8 per input
Frequency Range: 950-2150 MHz
Impedance: 50 Ohm, 75 Ohm or mixed impedance
Connectors: SMA female or precision F female
Nominal Input Level: -10 dBm
Insertion Loss: 0 ±3 dB
Return Loss: Greater than 14 dB
Full-Band Flatness: ±1.0 dB
36 MHz Flatness: ±0.3 dB
Output Port Isolation: Greater than 25 dB
Intermodulation Distortion: Less than -40 dBc
Group Delay Distortion: Less than 5 ns
Noise Figure: Less than 10 dB
Monitoring Outputs: 50 Ohm SMA female
LNB Power: 15.5 ±0.5 VDC, up to 500 mA per channel
RF Sensing Threshold: Adjustable from below 0 dBm to above -45 dBm
Alarm Outputs: LED indicators and dry contacts
Power Supply: Redundant 100-240 VAC inputs
Power Consumption: Less than 40 VA
Chassis: 19-inch, 1 RU
Dimensions: 483 mm W x 44 mm H x approximately 260 mm D
Weight: Approximately 8 kg

Available Configurations

DEV 2183/50: 50 Ohm SMA inputs and outputs

DEV 2183/50-75: 50 Ohm SMA inputs and 75 Ohm F outputs

DEV 2183/75: 75 Ohm F inputs and outputs

DEV 2183/75-50: 75 Ohm F inputs and 50 Ohm SMA outputs

Key Features

• Two independent 1:8 L-band distribution amplifiers

• Two inputs and 16 total RF outputs

• 950-2150 MHz satellite L-band coverage

• 50 Ohm, 75 Ohm and mixed-impedance configurations

• Dedicated monitoring output for each channel

• LNB power and current monitoring for each channel

• Adjustable LNB current and RF level alarm thresholds

• LED and dry-contact alarm indication

• Redundant power supplies for high availability

• Space-saving 19-inch, 1 RU rack-mount design
