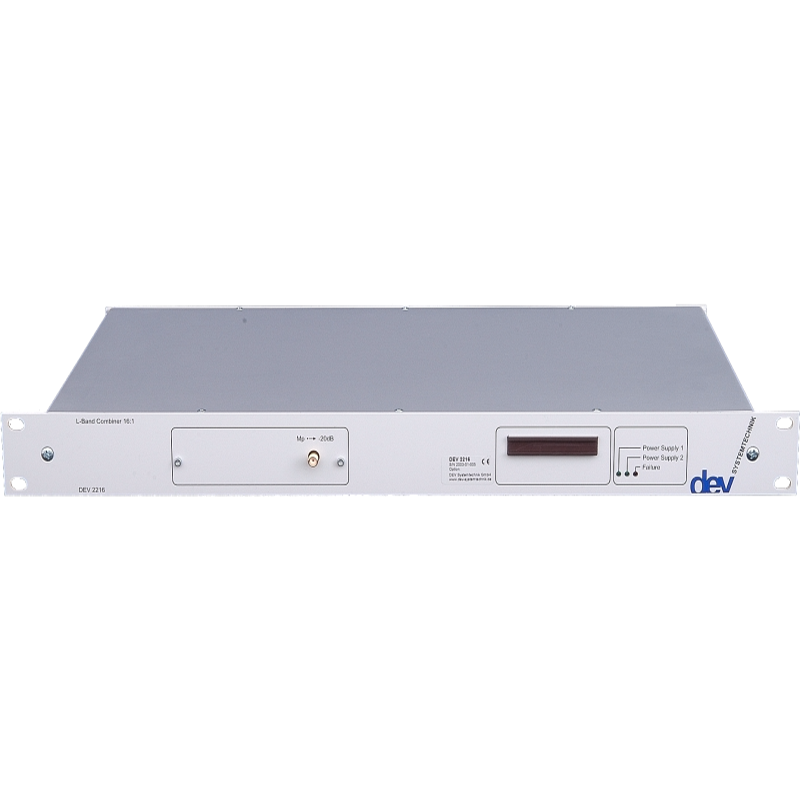

DEV 2216 16:1 Active L-Band Combiner, 950-2150 MHz

DEV 2216 16:1 Active L-Band Combiner, 950-2150 MHz

The DEV 2216 16:1 Active L-Band Combiner combines up to 16 satellite L-band input signals into one RF output. Its high-density configuration is ideal for teleports, satellite ground stations, broadcast headends and other installations that need to consolidate numerous L-band sources within limited rack space.

Operating from 950 to 2150 MHz, the DEV 2216 supports 50 Ohm SMA, 75 Ohm precision F and mixed-impedance configurations. All input ports are DC blocked, and greater than 20 dB isolation helps minimize interference and interaction between connected RF sources.

A front-panel monitoring port enables convenient measurement of the combined output without interrupting the primary signal path. Redundant power supplies support dependable operation in mission-critical systems, while the 19-inch, 1 RU chassis provides space-efficient rack integration.

Product Type: High-density active L-band combiner
Configuration: 16 inputs to 1 output
Frequency Range: 950-2150 MHz
Impedance: 50 Ohm, 75 Ohm or mixed impedance
Connectors: SMA female or precision F female
Nominal Input Level: -10 dBm
Damage Level: +10 dBm
Return Loss: Greater than 14 dB
Insertion Loss: 0 ±3 dB
Full-Band Flatness: Less than 2.0 dB, ±1.0 dB
36 MHz Flatness: Less than 0.3 dB, ±0.3 dB
Input Port Isolation: Greater than 20 dB
Intermodulation Distortion: Less than -40 dBc
Group Delay Distortion: Less than 5 ns
Monitoring Output: 50 Ohm SMA female
Monitoring Level: Combined output level minus 20 dB, ±1.0 dB
Input DC Blocking: Yes
Power Supply: Redundant 100-240 VAC inputs
Power Consumption: Less than 100 VA
Chassis: 19-inch, 1 RU
Dimensions: 483 mm W x 44 mm H x approximately 260 mm D
Weight: Approximately 5 kg
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

Available Configurations

DEV 2216/50: 50 Ohm SMA female inputs and output

DEV 2216/50-75: 50 Ohm SMA female inputs and 75 Ohm F female output

DEV 2216/75: 75 Ohm precision F female inputs and output

DEV 2216/75-50: 75 Ohm F female inputs and 50 Ohm SMA female output

Key Features

• Combines 16 L-band inputs into one output

• High-density RF combining in only 1 RU

• 950-2150 MHz satellite L-band coverage

• 50 Ohm, 75 Ohm and mixed-impedance versions

• SMA and precision F female connector options

• Front-panel RF monitoring output

• High isolation between input ports

• DC-blocked RF inputs

• Redundant AC power supplies

• Compact 19-inch rack-mount chassis

• Designed for teleports and large SATCOM distribution systems
