DEV 25xx Managed Bidirectional VSAT Distribution Systems, 800-2450 MHz

DEV 25xx Managed Bidirectional VSAT Distribution Systems, 800-2450 MHz

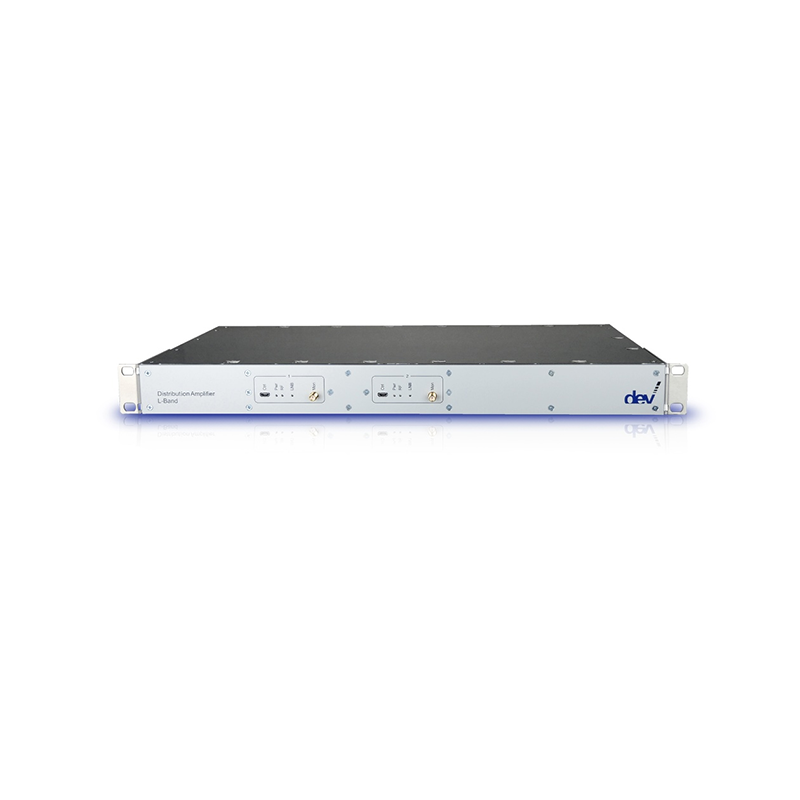

The DEV 25xx Series Managed Bidirectional VSAT Distribution Systems combine an active receive splitter and an active transmit combiner in a compact 19-inch, 1 RU chassis. The DEV 2544 provides 1:4 Rx distribution and 4:1 Tx combining, while the DEV 2588 provides 1:8 Rx distribution and 8:1 Tx combining.

Operating across the extended 800-2450 MHz L-band frequency range, the DEV 25xx Series supports 50 Ohm, 75 Ohm and mixed-impedance configurations with SMA, BNC or precision F female connectors. Integrated LNB power, optional BUC power, variable gain, variable slope, RF sensing and 10 MHz reference options provide a flexible solution for professional VSAT and SATCOM networks.

Ethernet connectivity enables remote control and monitoring through SNMP and the DEV Web Interface. Optional signal recording, an internal 10 MHz reference and 24 or 48 VDC BUC powering further simplify bidirectional signal distribution between satellite modems and outdoor RF equipment.

Product Type: Managed bidirectional VSAT distribution system
Frequency Range: 800-2450 MHz
Rx Function: Active L-band splitter
Tx Function: Active L-band combiner
Impedance: 50 Ohm, 75 Ohm or mixed impedance
Available Connectors: SMA female, BNC female or precision F female
Nominal Input Level: -10 dBm
Return Loss: Greater than 12 dB; typ. greater than 14 dB
Gain Adjustment - DEV 2544: -15 to +15 dB, ±0.5 dB
Gain Adjustment - DEV 2588: -15 to +11 dB, ±0.5 dB
Optional Gain Range: 0-30 dB
Variable Slope: 0-5 dB
Full-Band Flatness: ±1.0 dB
36 MHz Flatness: ±0.25 dB
Port Isolation: Greater than 25 dB
Intermodulation Distortion: Less than -40 dBc
Group Delay Distortion: Less than 0.5 ns within any 36 MHz
Monitoring Outputs: 50 Ohm SMA female
LNB Power: 13/18 VDC, up to 380 mA
22 kHz Tone: Switchable
RF Sensing Threshold: Adjustable from below 0 dBm to above -50 dBm
10 MHz Reference: External or optional internal source
Remote Management: Ethernet, SNMP and DEV Web Interface
Power Supply: 100-240 VAC
Power Consumption: Less than 35 VA without optional BUC power
Chassis: 19-inch, 1 RU
Dimensions: 483 mm W x 44 mm H x approximately 260 mm D
Weight: Approximately 2.5 kg

Available Models

DEV 2544: 1:4 Rx splitter and 4:1 Tx combiner

DEV 2588: 1:8 Rx splitter and 8:1 Tx combiner

Available Options

Internal 10 MHz Reference: Oven-controlled 10 MHz reference oscillator

30 dB Gain: Extends the adjustable gain range to 0-30 dB

Signal Recording: Adds signal visualization and external data storage through the web interface

24 V BUC Power: Supplies 24 VDC and up to 100 W at the Tx output

48 V BUC Power: Supplies 48 VDC and up to 100 W at the Tx output

10 MHz Pass-Through: Passes the reference signal through Tx combiner input port 1

Connector Options: SMA, BNC and precision F female connectors in 50 or 75 Ohm configurations

Key Features

• Active Rx splitter and Tx combiner in one chassis

• DEV 2544 1:4/4:1 configuration

• DEV 2588 1:8/8:1 configuration

• Extended 800-2450 MHz frequency coverage

• 50 Ohm, 75 Ohm and mixed-impedance configurations

• Flexible SMA, BNC and F female connector options

• Adjustable gain and variable slope

• External or optional internal 10 MHz reference

• Optional 10 MHz pass-through

• Switchable 13/18 VDC LNB power

• LNB current monitoring and adjustable alarms

• Optional 24 or 48 VDC BUC power with current monitoring

• RF sensing with adjustable threshold

• Tx and Rx monitoring outputs

• Ethernet, SNMP and DEV Web Interface

• Optional signal recording and data storage

• Redundant power supply

• Compact 19-inch, 1 RU rack-mount chassis
