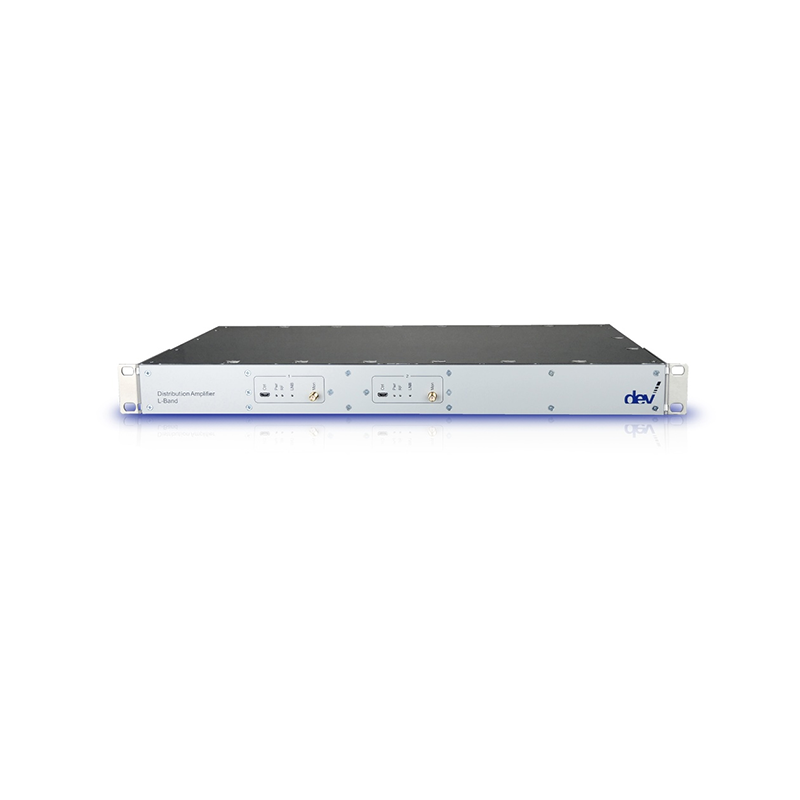

The DEV 215x Series Redundant L-Band Distribution Amplifiers provide high-availability 1:8, dual 1:8 or 1:16 active RF signal distribution for satellite ground stations, teleports, broadcast facilities and mission-critical L-band networks. Available models include the DEV 2152, DEV 2153 and DEV 2155.

Each model combines redundant amplifiers and redundant power supplies in a compact 19-inch, 1 RU chassis. Operating across the extended 800-2450 MHz frequency range, the series also provides variable gain, variable slope, LNB power, RF sensing and dedicated monitoring outputs.

Input and output ports can be configured independently for 50 Ohm, 75 Ohm or mixed-impedance operation using SMA, BNC or precision F female connectors. Ethernet connectivity enables remote control and monitoring through SNMP and the DEV Web Interface, with optional signal recording for performance analysis and external data storage.

Product Type: Redundant L-band distribution amplifiers
Frequency Range: 800-2450 MHz
Available Configurations: 1:8, dual 1:8 and 1:16
Impedance: 50 Ohm, 75 Ohm or mixed impedance
Available Connectors: SMA female, BNC female or precision F female
Nominal Input Level: -10 dBm
Return Loss: Greater than 14 dB
Insertion Loss: 0 ±1.5 dB
Variable Slope: 0-5 dB
Full-Band Flatness: ±1.0 dB
36 MHz Flatness: ±0.25 dB
Output Port Isolation: Greater than 25 dB
Intermodulation Distortion: Less than -40 dBc
Group Delay Distortion: Less than 0.5 ns within any 36 MHz
Noise Figure: Less than 15 dB
Monitoring Outputs: 50 Ohm SMA female
LNB Power: 13/18 VDC, up to 450 mA per channel
22 kHz Tone: Switchable
RF Sensing Threshold: Adjustable from below 0 dBm to above -50 dBm
Remote Management: Ethernet, SNMP and DEV Web Interface
Amplifier Redundancy: Included
Power Supply: Redundant 100-240 VAC inputs
Power Consumption: Less than 35 VA
Chassis: 19-inch, 1 RU
Dimensions: 483 mm W x 44 mm H x approximately 260 mm D
Weight: Approximately 2 kg

Available Models

DEV 2152: 1:8 redundant L-band distribution amplifier with one input and eight outputs

DEV 2153: Dual 1:8 redundant L-band distribution amplifier with two inputs and 16 total outputs

DEV 2155: 1:16 redundant L-band distribution amplifier with one input and 16 outputs

Model-Specific Gain Ranges

DEV 2152: -5 to +5 dB, ±0.5 dB

DEV 2153: -5 to +5 dB, ±0.5 dB

DEV 2155: -5 to +2 dB, ±0.5 dB

Connector and Impedance Options

vSin50: 50 Ohm SMA female input

vSin50B: 50 Ohm BNC female input

vSin75: 75 Ohm precision F female input

vSin75B: 75 Ohm BNC female input

vSout50: Eight 50 Ohm SMA female outputs

vSout50B: Eight 50 Ohm BNC female outputs

vSout75: Eight 75 Ohm precision F female outputs

vSout75B: Eight 75 Ohm BNC female outputs

Available Option

Option 77 - Signal Recording: Adds signal-data visualization and external storage through the DEV Web Interface

Key Features

• Redundant amplifier architecture

• Redundant AC power supplies

• 1:8, dual 1:8 and 1:16 configurations

• Extended 800-2450 MHz frequency coverage

• Adjustable gain and variable slope

• 50 Ohm, 75 Ohm and mixed-impedance configurations

• Flexible SMA, BNC and precision F connector options

• Dedicated RF monitoring output for each channel

• Switchable 13/18 VDC LNB power

• Switchable 22 kHz tone

• LNB current monitoring with adjustable thresholds

• RF sensing with adjustable alarm threshold

• Ethernet connectivity with SNMP support

• Remote management through the DEV Web Interface

• Optional signal recording and external data storage

• Compact 19-inch, 1 RU rack-mount chassis
