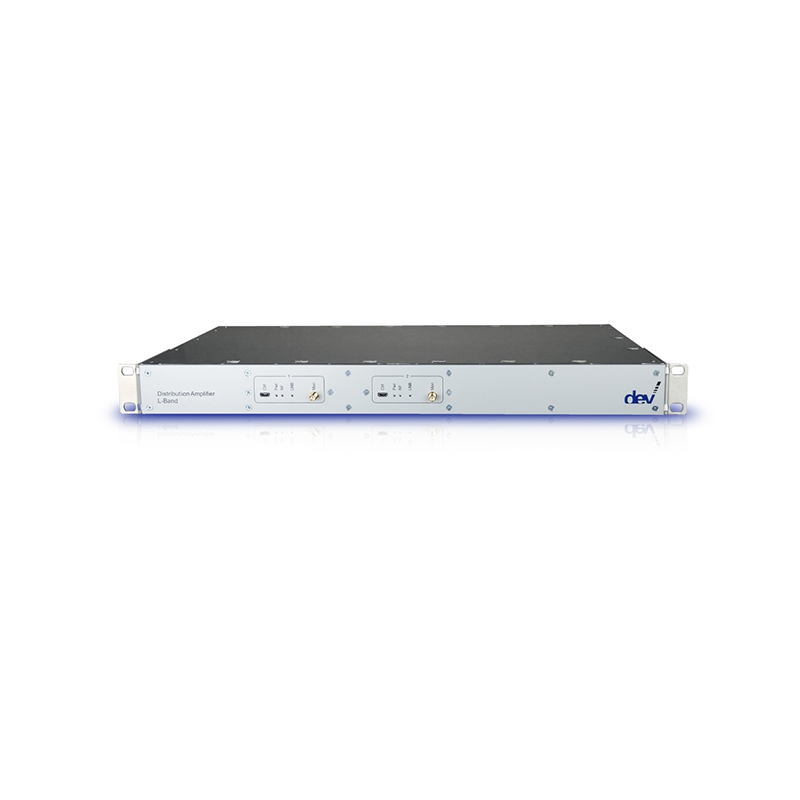

DEV 224x Managed L-Band Combining Amplifiers, 800-2450 MHz

DEV 224x Managed L-Band Combining Amplifiers, 800-2450 MHz

The DEV 224x Series Managed L-Band Combining Amplifiers provide configurable 8:1, dual 8:1 or 16:1 active signal combining for satellite ground stations, teleports, broadcast facilities and professional L-band distribution networks. Available models include the DEV 2242, DEV 2243 and DEV 2245.

Operating across the extended 800-2450 MHz frequency range, these managed combiners provide variable gain, adjustable slope, RF sensing and dedicated monitoring outputs. DC-blocked inputs protect connected RF sources, while high input-to-input isolation minimizes interaction between signals.

Input and output ports can be configured independently for 50 Ohm, 75 Ohm or mixed-impedance operation using SMA, BNC or precision F female connectors. Ethernet connectivity enables remote monitoring and control through SNMP and the DEV Web Interface. Redundant AC power supplies and optional signal recording support mission-critical RF installations.

Product Type: Managed L-band combining amplifiers
Frequency Range: 800-2450 MHz
Available Configurations: 8:1, dual 8:1 and 16:1
Impedance: 50 Ohm, 75 Ohm or mixed impedance
Available Connectors: SMA female, BNC female or precision F female
Nominal Input Level: -10 dBm aggregated power
Damage Level: +10 dBm
Return Loss: Greater than 14 dB
Insertion Loss: 0 ±1.5 dB
Variable Slope: 0-5 dB
Full-Band Flatness: ±1.0 dB
36 MHz Flatness: ±0.25 dB
Input Port Isolation: Greater than 25 dB
Intermodulation Distortion: Less than -40 dBc
Group Delay Distortion: Less than 0.5 ns within any 36 MHz
Monitoring Outputs: 50 Ohm SMA female
RF Sensing Threshold: Adjustable from below 0 dBm to above -50 dBm
Remote Management: Ethernet, SNMP and DEV Web Interface
Input DC Blocking: Yes
Power Supply: Redundant 100-240 VAC inputs
Power Consumption: Less than 35 VA
Chassis: 19-inch, 1 RU
Dimensions: 483 mm W x 44 mm H x approximately 260 mm D
Weight: Approximately 2 kg
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

Available Models

DEV 2242: 8:1 managed L-band combining amplifier with eight inputs and one output

DEV 2243: Dual 8:1 managed L-band combining amplifier with 16 inputs and two independent outputs

DEV 2245: 16:1 managed L-band combining amplifier with 16 inputs and one output

Model-Specific Performance

DEV 2242

Gain Adjustment: -15 to +11 dB, ±0.5 dB
Noise Figure: Less than 25 dB
Monitoring Level: Combined output level minus 35 dB, ±3 dB

DEV 2243

Gain Adjustment: -15 to +11 dB, ±0.5 dB
Noise Figure: Less than 25 dB
Monitoring Level: Combined output level minus 35 dB, ±3 dB

DEV 2245

Gain Adjustment: -15 to +7 dB, ±0.5 dB
Noise Figure: Less than 29 dB
Monitoring Level: Combined output level minus 39 dB, ±3 dB

Connector and Impedance Options

vCin50: Eight 50 Ohm SMA female combiner inputs

vCin50B: Eight 50 Ohm BNC female combiner inputs

vCin75: Eight 75 Ohm precision F female combiner inputs

vCin75B: Eight 75 Ohm BNC female combiner inputs

vCout50: One 50 Ohm SMA female combiner output

vCout50B: One 50 Ohm BNC female combiner output

vCout75: One 75 Ohm precision F female combiner output

vCout75B: One 75 Ohm BNC female combiner output

Available Option

Option 77 - Signal Recording: Adds signal-data visualization and external storage through the DEV Web Interface

Key Features

• Managed L-band combining from 800 to 2450 MHz

• 8:1, dual 8:1 and 16:1 configurations

• Adjustable amplifier gain

• Variable slope adjustment

• 50 Ohm, 75 Ohm and mixed-impedance configurations

• Flexible SMA, BNC and precision F connector options

• DC-blocked RF input ports

• High isolation between input ports

• Dedicated monitoring output for each combiner

• RF sensing with adjustable threshold

• Ethernet connectivity with SNMP support

• Remote control through the DEV Web Interface

• Optional signal recording and external data storage

• Redundant AC power supplies

• Compact 19-inch, 1 RU rack-mount chassis
