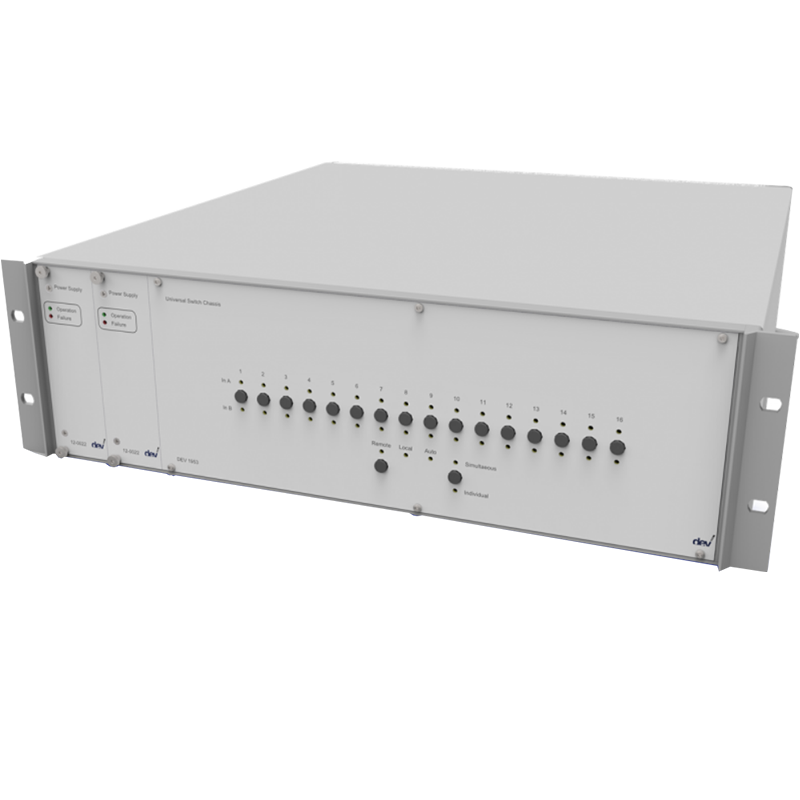

The DEV 1953 Universal Switch Chassis is a modular 3 RU platform for RF, optical and digital-video switching and redundancy applications. The chassis provides eight standard module slots and can be expanded to 12 or 16 slots, allowing multiple independent switching and signal-distribution channels within one enclosure.

Available modules include DPST A/B switches, RF-sensing switches, passive splitters/combiners, optical switches and ASI/SDI switching or distribution modules. Depending on the installed modules, the system supports CATV, L-band and broadband RF signals up to 2500 MHz, optical wavelengths from 1260 to 1610 nm and digital formats through 3G-SDI.

Automatic RF-sensing control, optional switchback, main/backup reassignment and SNMP trap-based switching make the DEV 1953 suitable for mission-critical redundancy systems. Ethernet, RS-232, SNMP and the DEV Web Interface provide flexible integration with professional monitoring and control platforms.

Product Type: Modular multi-channel switching and redundancy chassis
Standard Module Capacity: Eight slots
Expandable Capacity: 12 or 16 slots
Supported Applications: A/B switching, transfer switching, signal sensing, splitting, combining and distribution
RF Frequency Range: Module-dependent, from DC to 2500 MHz
Optical Wavelength Range: 1260-1610 nm
Digital Signal Support: ASI, SD-SDI, HD-SDI and 3G-SDI
RF Impedance: 50 Ohm or 75 Ohm, module-dependent
RF Connectors: SMA, BNC or precision F female
Optical Connectors: SC/APC, FC/APC or E2000/HRL
Remote Interfaces: Ethernet and RS-232 serial
Remote Management: DEV Web Interface, SNMP, Sandar Prosan, Leitch or QEC protocol
Ethernet Connector: RJ45
Serial Connector: Sub-D-9 female
Power Supply: Redundant 100-240 VAC inputs
Power Consumption: Less than 50 VA
Chassis: 19-inch, 3 RU
Dimensions: 483 mm W x 133 mm H x 495 mm D
Weight: Typ. 9-12 kg
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

Supported Module Types

• DPST A/B Switches: Available for CATV, L-band and broadband RF signals

• DPST Sensing Switches: Provide automatic switching based on detected RF levels

• Transfer Switches: Support redundant signal-path configurations

• Passive Splitter/Combiners: Available in 1:2/2:1 and 1:4/4:1 configurations

• Optical Switches: Provide 1:2 switching from 1260 to 1610 nm

• ASI/SDI Switches: Support ASI, SD-SDI, HD-SDI and 3G-SDI signals

• Distribution Amplifiers: Provide 1:3 digital-signal distribution

Available Options

• Automatic Switchback: Returns to the primary input when the required signal conditions are restored

• Main/Backup Swap: Dynamically reverses primary and backup input assignments

• TRAC: Initiates switching actions in response to SNMP traps from external equipment

• 24 V Digital Inputs: Supports up to 16 external control inputs

• 12 V Digital Inputs: Supports up to 16 external control inputs

• Additional Module Slots: Expands the chassis from eight to 12 or 16 slots

Key Features

• Eight standard module slots in a 3 RU chassis

• Expandable to 12 or 16 module slots

• CATV, L-band and broadband RF switching

• ASI, SD-SDI, HD-SDI and 3G-SDI compatibility

• DPST A/B and RF-sensing switch modules

• Transfer-switch and passive splitter/combiner support

• Optical switching from 1260 to 1610 nm

• Automatic switching based on RF signal levels

• Optional automatic switchback

• Optional main/backup reassignment

• Optional SNMP trap-controlled switching

• 50 Ohm and 75 Ohm interface options

• Redundant AC power supplies

• Ethernet and RS-232 control

• DEV Web Interface and SNMP support

• Sandar Prosan, Leitch and QEC protocol integration
