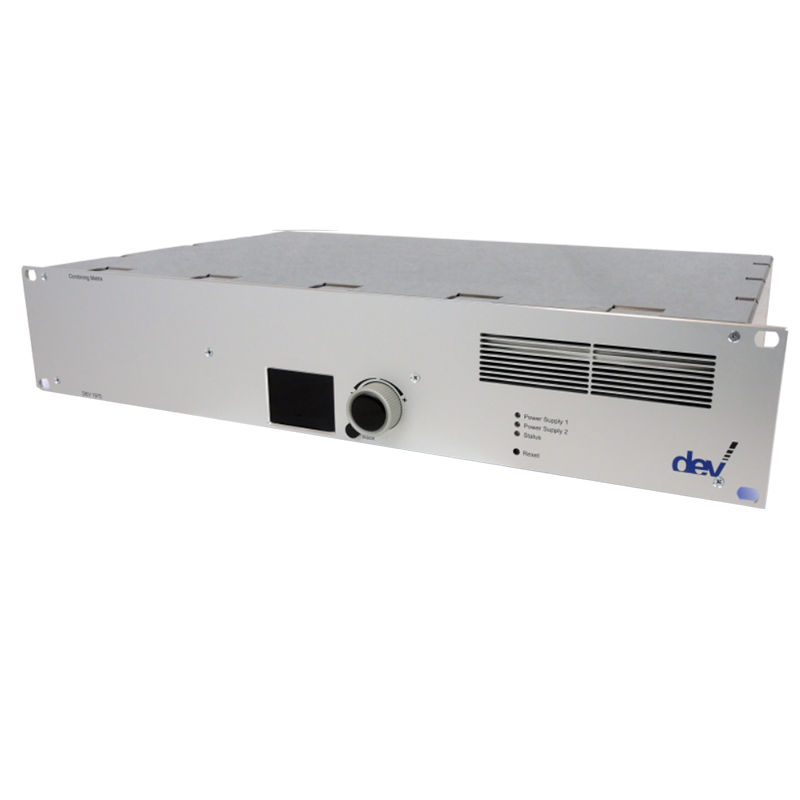

DEV 1975 ARCHIMEDES L-Band Combining Fan-In Matrix, up to 16x16

DEV 1975 ARCHIMEDES L-Band Combining Fan-In Matrix, up to 16x16

The DEV 1975 ARCHIMEDES L-Band Combining Fan-In Matrix routes and combines multiple input signals into selected output channels. Unlike a conventional fan-out distribution matrix, the DEV 1975 can combine up to eight inputs into each output, making it particularly suitable for satellite uplinks and other applications requiring flexible carrier aggregation.

Available in 16x8 and 16x16 base configurations, the matrix can also be supplied with fewer inputs or outputs and upgraded as requirements grow. Integrated RF sensing supports signal-level monitoring and automated switching arrangements for redundant signal paths.

The DEV 1975 operates across the extended 850-2450 MHz frequency range and supports 50 Ohm, 75 Ohm and optical input configurations. Variable input and output gain, optional slope control, redundant power supplies, a graphical local interface, SNMP and the DEV Web Interface provide flexible control in a compact 19-inch, 2 RU chassis.

Product Type: Managed L-band combining fan-in matrix
Frequency Range: 850-2450 MHz
Maximum Capacity: 16 inputs x 16 outputs
Base Configurations: 16x8 or 16x16
Maximum Combined Inputs per Output: 8
Standard Impedance: 75 Ohm
Standard Connectors: Precision F female
Optional RF Interfaces: 50 Ohm SMA, 50 Ohm BNC or 75 Ohm BNC female
Optional Optical Inputs: LC/APC or SC/APC
Operational Input Level: Less than -5 dBm
Damage Level: +25 dBm
Return Loss: Greater than 12 dB; typ. 14 dB
Input Gain Adjustment: -5 to +5 dB
Output Gain Adjustment: -32 to +31 dB
Optional Variable Slope: 0-5 dB
Full-Band Flatness: Typ. ±2.0 dB
36 MHz Flatness: ±0.75 dB
Input-to-Input Isolation: Typ. 60 dB
Output-to-Output Isolation: Typ. 60 dB
Input-to-Output Crosstalk: Typ. 60 dB
Off-State Isolation: Typ. 60 dB
Intermodulation Performance: Greater than 40 dBc at -20 dBm per tone
Group Delay Distortion: Less than 1 ns within any 36 MHz
Output IP3: Greater than 12 dBm
Output P1dB: 2 dBm
Switching Technology: Semiconductor
Local Interface: 2.2-inch full-color display and rotary control
Remote Management: Ethernet, SNMP and DEV Web Interface
Power Supply: Redundant 100-240 VAC inputs
Power Consumption: Less than 250 VA
Chassis: 19-inch, 2 RU
Dimensions: 483 mm W x 89 mm H x approximately 300 mm D
Weight: Approximately 16 kg
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

Available Models

• DEV 1975/16x8: 16-input, 8-output L-band combining matrix

• DEV 1975/16x16: 16-input, 16-output L-band combining matrix

Optical Input Specifications

• Fiber Type: Single-mode 9/125 µm
• Wavelength: 1100-1650 nm
• Standard Optical Input Level: -22 to 0 dBm
• High-Power Optical Input Level: -22 to +3 dBm
• Optical Damage Level: +10 dBm
• Connector Options: LC/APC or SC/APC

LNB Power Options

• Capacity: Four RF inputs per option
• LNB Power: Up to 350 mA per input
• Voltage Selection: 13 or 18 VDC
• Tone Selection: 0 or 22 kHz
• Current Monitoring: Adjustable upper and lower thresholds
• Available Interfaces: 50 Ohm SMA, 50 Ohm BNC, 75 Ohm BNC or 75 Ohm F female

Available Options

• RF Interface Modules: 50 Ohm SMA, 50 Ohm BNC or 75 Ohm BNC input and output modules

• Optical Inputs: Standard or high-power LC/APC and SC/APC input modules

• LNB Powering: Adds switchable 13/18 VDC and 0/22 kHz control in four-channel groups

• Variable Slope: Adds 0-5 dB slope adjustment across all signal paths

• Integrated Spectrum Analyzer: Provides spectrum monitoring through the DEV Web Interface

• Secure Lock Operation: Prevents unauthorized interruption of protected signal paths

• Reduced Channel Count: Supplies four fewer inputs or outputs while preserving field-upgrade capability

Key Features

• Fan-in matrix for combining multiple L-band signals

• Combines up to eight inputs into each output

• 16x8 and 16x16 base configurations

• Reduced configurations available

• Extended 850-2450 MHz frequency coverage

• Ideally suited for satellite uplink systems

• Electrical and optical input options

• 50 Ohm and 75 Ohm RF interfaces

• Adjustable input and output gain

• Optional variable slope

• Integrated RF sensing

• Signal-level-based automatic switching capability

• Optional LNB power with current monitoring

• Optional integrated spectrum analyzer

• Secure multi-user path locking

• Graphical local user interface

• Redundant AC power supplies

• Signal recording and configuration backup

• Ethernet, SNMP and DEV Web Interface
