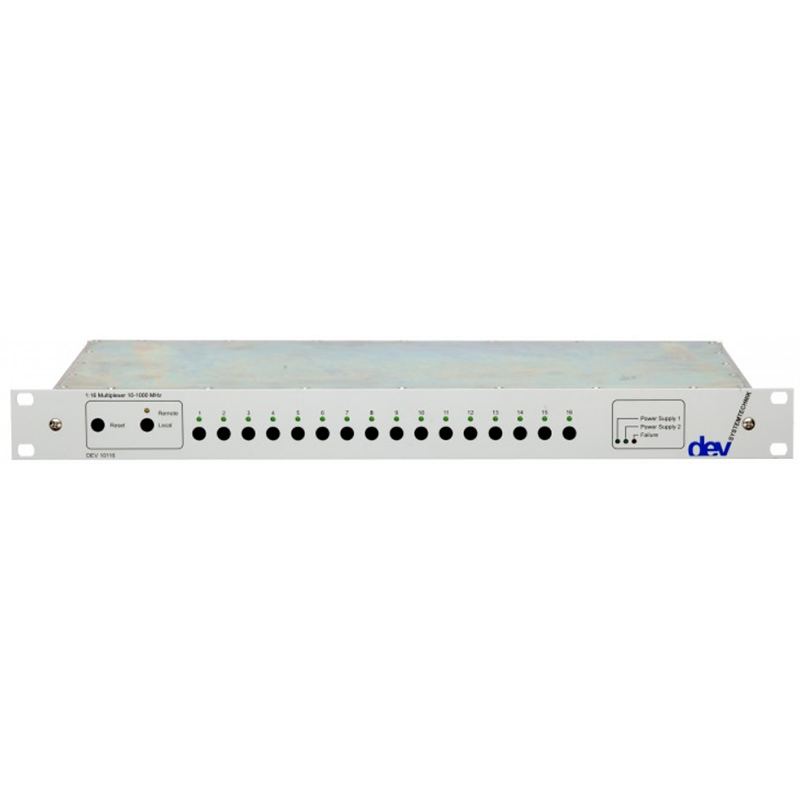

DEV 1f1n Bidirectional RF De-/Multiplexer Switches, 1 RU

DEV 1f1n Bidirectional RF De-/Multiplexer Switches, 1 RU

The DEV 1f1n Bidirectional RF De-/Multiplexer Series provides electronically controlled routing between one common port and eight or 16 RF ports. Each unit can operate bidirectionally as a 1:n demultiplexer or n:1 multiplexer, allowing a selected signal path to be routed in either direction.

Separate models cover the 47-1006 MHz CATV band or 950-2150 MHz L-band. Both frequency families are available with 50 Ohm SMA or 75 Ohm precision F female connectors.

The compact 1 RU units feature semiconductor switching, redundant AC power supplies, local front-panel operation, Ethernet and RS-232 connectivity, SNMP and the DEV Web Interface. A panel-free configuration is available for installations controlled entirely through remote monitoring and control systems.

Product Type: Bidirectional RF de-/multiplexer switch
Switching Configurations: 1:8/8:1 or 1:16/16:1
CATV Frequency Range: 47-1006 MHz
L-Band Frequency Range: 950-2150 MHz
RF Impedance: 50 Ohm or 75 Ohm
50 Ohm Connectors: SMA female
75 Ohm Connectors: Precision F female
Nominal Input Level: Less than +5 dBm
Damage Level: +15 dBm
Selected-Path Return Loss: Greater than 14 dB
Common-Port Return Loss: Greater than 14 dB
CATV-Band Insertion Loss: 5 ±3 dB
L-Band Insertion Loss: 6 ±3 dB
Flatness: ±1.5 dB
Input-Port Isolation: Greater than 50 dB
Switching Technology: Semiconductor
Remote Interfaces: Ethernet and RS-232
Remote Management: DEV Web Interface, SNMP, Sandar Prosan, Leitch or QEC protocol
Power Supply: Redundant 100-240 VAC inputs
Power Consumption: Less than 30 VA
Chassis: 19-inch, 1 RU
Dimensions: 483 mm W x 44 mm H x 260 mm D
Weight: Typ. 5 kg
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1

Available Models

• DEV 1018/50: 1:8/8:1 switch, 47-1006 MHz, 50 Ohm SMA female

• DEV 1018/75: 1:8/8:1 switch, 47-1006 MHz, 75 Ohm F female

• DEV 10116/50: 1:16/16:1 switch, 47-1006 MHz, 50 Ohm SMA female

• DEV 10116/75: 1:16/16:1 switch, 47-1006 MHz, 75 Ohm F female

• DEV 1218/50: 1:8/8:1 switch, 950-2150 MHz, 50 Ohm SMA female

• DEV 1218/75: 1:8/8:1 switch, 950-2150 MHz, 75 Ohm F female

• DEV 12116/50: 1:16/16:1 switch, 950-2150 MHz, 50 Ohm SMA female

• DEV 12116/75: 1:16/16:1 switch, 950-2150 MHz, 75 Ohm F female

Available Options

• No Front-Panel Control: Removes the device panel for systems operated entirely through the web interface or a remote-control protocol

• Additional Web License: Provides an additional DEV Web Interface license

Key Features

• Bidirectional 1:n and n:1 RF switching

• Eight- and 16-port configurations

• CATV-band and L-band models

• 50 Ohm and 75 Ohm versions

• SMA and precision F female connectors

• Semiconductor switching technology

• Greater than 50 dB port-to-port isolation

• Graphical front-panel control

• Optional panel-free configuration

• Ethernet and RS-232 interfaces

• DEV Web Interface

• SNMP monitoring and control

• Sandar Prosan, Leitch and QEC protocol support

• Data-backup capability

• Redundant AC power supplies

• Compact 19-inch, 1 RU chassis
