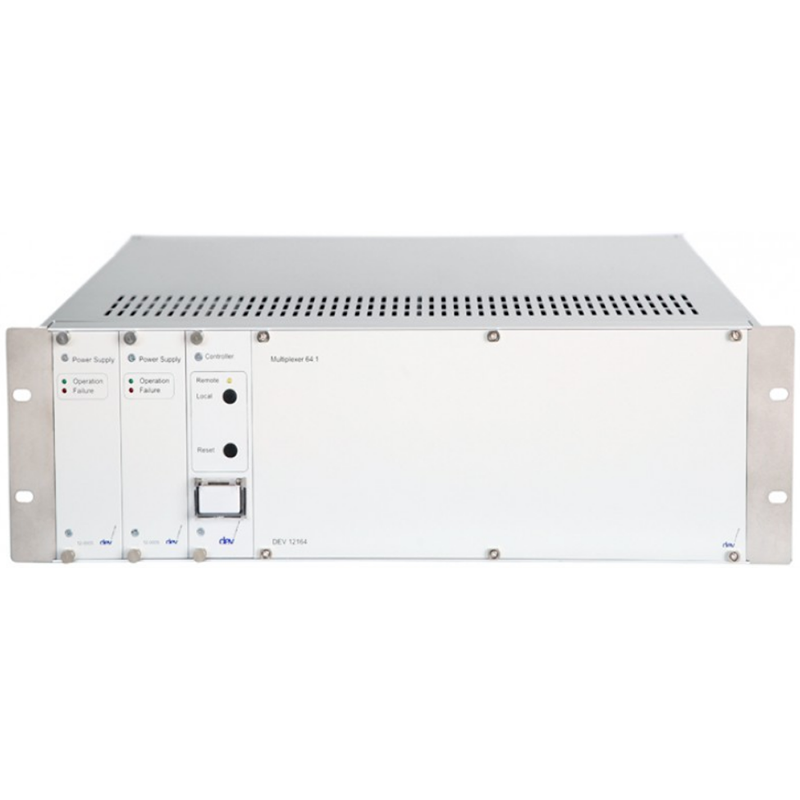

DEV 1f1nn Bidirectional RF De-/Multiplexer Switches, 3 RU

DEV 1f1nn Bidirectional RF De-/Multiplexer Switches, 3 RU

The DEV 1f1nn Bidirectional RF De-/Multiplexer Series provides electronically controlled routing between one common port and 24, 32, 48 or 64 RF ports. Each unit operates bidirectionally as a 1:nn demultiplexer or nn:1 multiplexer, routing a selected signal path in either direction.

Separate models cover the 47-1006 MHz CATV band or 950-2150 MHz L-band. Both families are available with 50 Ohm SMA or 75 Ohm precision F female connectors. Optional input or output amplifiers can compensate for signal loss in L-band applications.

The 3 RU chassis includes semiconductor switching, redundant AC power supplies, Ethernet and RS-232 interfaces, SNMP, data backup and the DEV Web Interface.

Product Type: Bidirectional RF de-/multiplexer switch
Switching Configurations: 1:24/24:1, 1:32/32:1, 1:48/48:1 or 1:64/64:1
CATV Frequency Range: 47-1006 MHz
L-Band Frequency Range: 950-2150 MHz
RF Impedance: 50 Ohm or 75 Ohm
50 Ohm Connectors: SMA female
75 Ohm Connectors: Precision F female
Nominal Input Level: Less than 0 dBm
Damage Level: +15 dBm
50 Ohm Path Return Loss: Greater than 16 dB
75 Ohm Path Return Loss: Greater than 14 dB
Common-Port Return Loss: Greater than 18 dB
Insertion Loss: Less than 8 dB
Full-Band Flatness: ±2.0 dB
8/36 MHz Flatness: ±0.25 dB
Switching Technology: Semiconductor
Remote Interfaces: Ethernet and RS-232
Remote Management: DEV Web Interface, SNMP, Sandar Prosan, Leitch or QEC protocol
Power Supply: Redundant 100-240 VAC inputs
Power Consumption: Less than 80 VA
Chassis: 19-inch, 3 RU
Dimensions: 483 mm W x 133 mm H x 495 mm D
Weight: Typ. 12 kg
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1

Available CATV-Band Models

• DEV 10124/50 or /75: 1:24/24:1 switch, 47-1006 MHz

• DEV 10132/50 or /75: 1:32/32:1 switch, 47-1006 MHz

• DEV 10148/50 or /75: 1:48/48:1 switch, 47-1006 MHz

• DEV 10164/50 or /75: 1:64/64:1 switch, 47-1006 MHz

Available L-Band Models

• DEV 12124/50 or /75: 1:24/24:1 switch, 950-2150 MHz

• DEV 12132/50 or /75: 1:32/32:1 switch, 950-2150 MHz

• DEV 12148/50 or /75: 1:48/48:1 switch, 950-2150 MHz

• DEV 12164/50 or /75: 1:64/64:1 switch, 950-2150 MHz

The /50 versions use 50 Ohm SMA female connectors. The /75 versions use 75 Ohm precision F female connectors.

Available Options

• Output Amplifier: Adds an active common output when an L-band model operates as an nn:1 multiplexer

• Input Amplifier: Adds an active common input when an L-band model operates as a 1:nn demultiplexer

• Additional Web License: Provides another DEV Web Interface license

Key Features

• Bidirectional 1:nn and nn:1 RF switching

• 24-, 32-, 48- and 64-port configurations

• CATV-band and L-band models

• 50 Ohm and 75 Ohm versions

• SMA and precision F female connectors

• Optional L-band input or output amplification

• Semiconductor switching technology

• ±0.25 dB flatness within an 8 or 36 MHz interval

• Ethernet and RS-232 interfaces

• DEV Web Interface

• SNMP monitoring and control

• Sandar Prosan, Leitch and QEC protocol support

• Data-backup capability

• Redundant AC power supplies

• Compact 19-inch, 3 RU chassis
