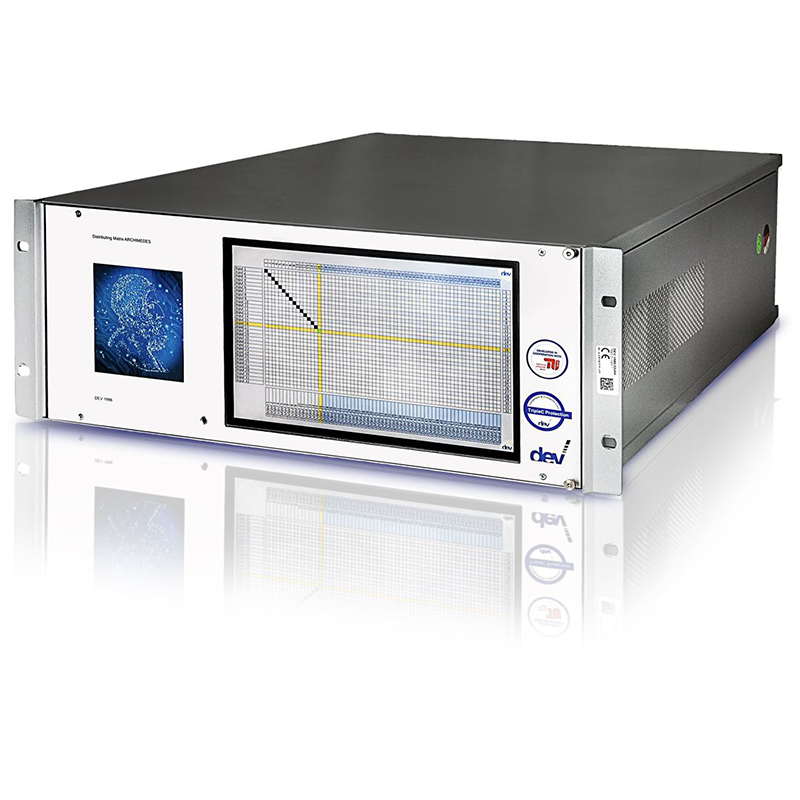

DEV 1976 ARCHIMEDES L-Band Combining Fan-In Matrix, up to 64x44

The DEV 1976 ARCHIMEDES L-Band Combining Fan-In Matrix routes and combines multiple input signals into selected output channels. Unlike a conventional fan-out distribution matrix, the DEV 1976 can combine up to eight inputs into each output, making it particularly suitable for satellite uplinks, carrier aggregation and redundant transmission systems.

Available in standard 32x22, 32x44, 64x22 and 64x44 configurations, the 4 RU matrix can also be supplied with fewer channels and field-upgraded as requirements grow. Integrated RF sensing supports signal-level monitoring and automatic switching arrangements that maintain service if an assigned signal path fails.

The DEV 1976 operates from 850 to 2450 MHz and supports 50 Ohm, 75 Ohm and optical input configurations. Available options include variable slope, LNB power, an integrated spectrum analyzer, an integrated TV receiver, a multi-touch display and controller redundancy. Remote control and monitoring are provided through SNMP and the DEV Web Interface.

Product Type: Managed L-band combining fan-in matrix
Frequency Range: 850-2450 MHz
Maximum Capacity: 64 inputs x 44 outputs
Standard Configurations: 32x22, 32x44, 64x22 and 64x44
Reduced Configurations: Available in eight-channel increments
Maximum Combined Inputs per Output: 8
Standard Impedance: 75 Ohm
Standard Connectors: Precision F female
Optional RF Interfaces: 50 Ohm SMA, 50 Ohm BNC or 75 Ohm BNC female
Optional Optical Inputs: LC/APC or SC/APC
Operational Input Level: Less than -5 dBm
Damage Level: +25 dBm
Return Loss: Greater than 12 dB; typ. 14 dB
Input Gain Adjustment: -5 to +5 dB
Output Gain Adjustment: -32 to +31 dB
Optional Variable Slope: 0-5 dB
Full-Band Flatness: Typ. ±2.0 dB
36 MHz Flatness: ±0.75 dB
Input-to-Input Isolation: Typ. 60 dB
Output-to-Output Isolation: Typ. 60 dB
Input-to-Output Crosstalk: Typ. 60 dB
Off-State Isolation: Typ. 60 dB
Intermodulation Distortion: Less than -40 dBc
Group Delay Distortion: Less than 1 ns within any 36 MHz
Output IP3: Greater than 12 dBm
Output P1dB: 2 dBm
Switching Technology: Semiconductor
Remote Management: Ethernet, SNMP and DEV Web Interface
Power Supply: Redundant 100-240 VAC inputs
Power Consumption: Less than 250 VA
Chassis: 19-inch, 4 RU
Dimensions: 483 mm W x 178 mm H x 631 mm D
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

Standard Configurations

DEV 1976/32x22: 32-input, 22-output combining matrix

DEV 1976/32x44: 32-input, 44-output combining matrix

DEV 1976/64x22: 64-input, 22-output combining matrix

DEV 1976/64x44: 64-input, 44-output combining matrix

• Field-upgradeable versions are available for incremental capacity expansion

Approximate Weight

32x22: Approximately 18 kg

32x44 or 64x22: Approximately 20 kg

64x44: Approximately 25 kg

Optical Input Specifications

Fiber Type: Single-mode 9/125 µm

Wavelength: 1100-1650 nm
Standard Optical Input Level: -22 to 0 dBm
High-Power Optical Input Level: -22 to +3 dBm
Optical Damage Level: +10 dBm
Connector Options: LC/APC or SC/APC

LNB Power Option

LNB Power: Up to 350 mA per RF input
Voltage Selection: 13 or 18 VDC
Tone Selection: 0 or 22 kHz
Current Monitoring: Adjustable upper and lower thresholds
Additional Equipment: 1 RU redundant LNB power-supply chassis

Available Options

50 Ohm SMA Modules: Four-channel RF input or output modules

50 Ohm BNC Modules: Four-channel RF input or output modules

75 Ohm BNC Modules: Four-channel RF input or output modules

Optical Inputs: Standard or high-power LC/APC and SC/APC modules

Variable Slope: Adds 0-5 dB slope control to all matrix paths

LNB Powering: Adds 13/18 VDC and 0/22 kHz control to RF inputs

Integrated Spectrum Analyzer: Provides spectrum monitoring through the web interface or multi-touch display

Secure Lock Operation: Prevents unauthorized interruption of locked signal paths

Integrated TV Receiver: Displays unprotected content routed from a matrix input

Redundant Controller: Adds an automatic backup system controller

Multi-Touch Display: Adds a 10.1-inch HD color local control interface

ARCHIMEDES Cluster Preparation: Enables multiple chassis to function as a larger matrix

Reduced Channel Count: Supplies fewer inputs or outputs while preserving field-upgrade capability

Key Features

• Fan-in matrix for combining multiple L-band signals

• Combines up to eight inputs into each output

• Configurations available up to 64x44 in 4 RU

• Field-upgradeable input and output capacity

• Ideally suited for satellite uplink systems

• Electrical and optical input options

• 50 Ohm and 75 Ohm RF interfaces

• Hot-pluggable input and output modules

• Adjustable input and output gain

• Optional variable slope

• Integrated RF sensing

• Signal-level-based automatic switching

• Optional LNB power with current monitoring

• Optional integrated spectrum analyzer

• Optional TV receiver for content monitoring

• Optional full-color multi-touch display

• Optional redundant controller

• Redundant AC power supplies

• Secure multi-user path locking

• Signal recording and configuration backup

• Ethernet, SNMP and DEV Web Interface
