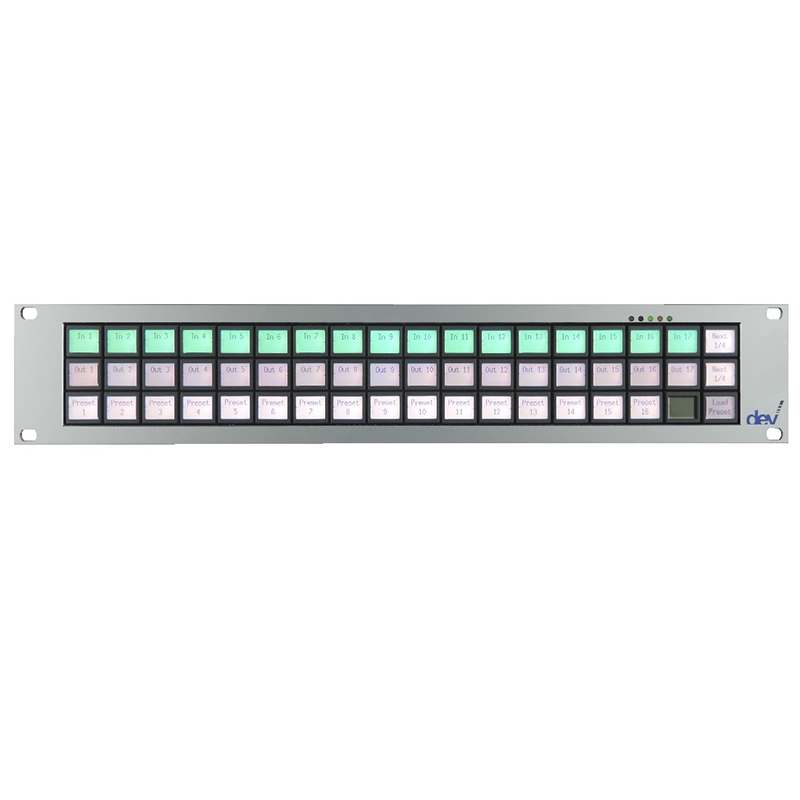

DEV 8552 Remote Control Panel for DEV 198x Matrix Switches

DEV 8552 Remote Control Panel for DEV 198x Matrix Switches

The DEV 8552 Remote Control Panel provides convenient remote operation of DEV 198x RF matrix switches over an Ethernet network. Its 54 high-resolution LCD keys enable operators to select and switch matrix crosspoints quickly from a centralized control position.

Each LCD key delivers clear visual identification with a wide viewing angle and high contrast. The compact 19-inch, 2 RU panel incorporates an automatic sleep mode, low power consumption and a shallow mounting depth of only 47 mm.

The functionality and key layout can be customized for application-specific operating requirements. DEV can also adapt the panel to control other DEV products or supply alternative panel sizes upon request.

Product Type: Ethernet remote control panel
Primary Application: Remote crosspoint switching
Standard Compatibility: DEV 198x matrix switches
Number of Keys: 54
Key Type: High-resolution LCD
Network Interface: Ethernet
Network Connector: RJ-45
Primary Input Voltage: 100-240 VAC
Power Supply Output: 24 VDC, maximum 2.7 A
Typical Power Consumption: Less than 20 VA
Mounting: 19-inch rack
Chassis Height: 2 RU
Dimensions: 483 mm W x 89 mm H x 47 mm D
Weight: Approximately 1.6 kg
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

Customization Options

• Application-specific LCD-key functions

• Customized key labels and panel layout

• Adaptation for other DEV products upon request

• Alternative control-panel sizes upon request

Key Features

• Remote operation of DEV 198x matrix switches

• Ethernet connectivity for flexible panel placement

• Convenient switching of matrix crosspoints

• 54 high-resolution LCD keys

• Wide key viewing angle and high contrast

• Customizable key functions and layouts

• Automatic sleep mode

• Low power consumption

• Compact 19-inch, 2 RU construction

• Shallow 47 mm mounting depth

• Long operating service life

• Adaptable for other DEV equipment

• Alternative panel sizes available upon request
