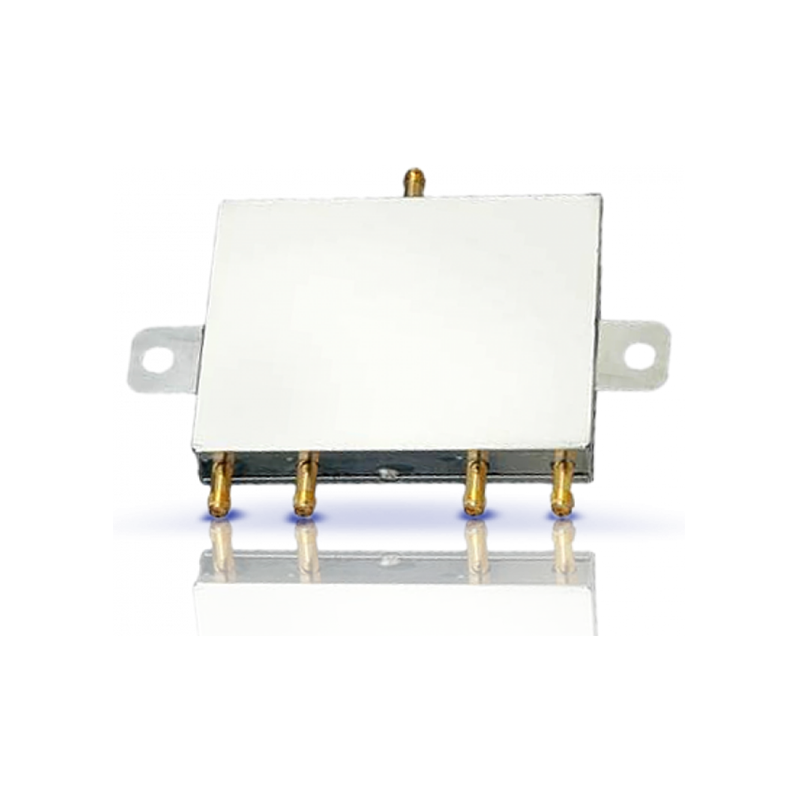

The DEV 2644 Ultra-Broadband Low-Loss Splitter/Combiner provides bidirectional passive RF signal distribution in a compact, wall-mountable enclosure. It can operate as either a 1:4 splitter or a 4:1 combiner, making it suitable for satellite, broadcast and broadband RF distribution systems.

Two versions are available. The DEV 2644/50 covers 500-2700 MHz with 50 Ohm SMA female connectors, while the DEV 2644/75 covers 400-2850 MHz with 75 Ohm precision F female connectors. DC signals are not blocked, allowing DC power or control signals to pass through the unit when required.

Product Type: Passive ultra-broadband splitter/combiner
Configuration: 1:4 splitter or 4:1 combiner
Number of Branch Ports: 4
Number of Common Ports: 1
Frequency Range: Up to 400-2850 MHz, depending on model
Available Impedance: 50 Ohm or 75 Ohm
Available Connectors: SMA female or precision F female
Branch-Port Return Loss: Greater than 20 dB
Insertion Loss: 8 ±2 dB
Full-Band Flatness: ±1.5 dB
36 MHz Flatness: ±0.2 dB
DC Blocking: No
Mounting: Wall mountable
Dimensions: 104 mm W x 15 mm H x 82 mm D
Weight: Approximately 0.3 kg
Environmental Conditions: ETS 300019 Part 1-3 Class 3.1E

Available Models

DEV 2644/50

Configuration: 1:4 splitter or 4:1 combiner
Frequency Range: 500-2700 MHz
Impedance: 50 Ohm
Connectors: SMA female
Common-Port Return Loss: Greater than 17 dB
Port Isolation: Greater than 22 dB; typ. greater than 25 dB

DEV 2644/75

Configuration: 1:4 splitter or 4:1 combiner
Frequency Range: 400-2850 MHz
Impedance: 75 Ohm
Connectors: Precision F female
Common-Port Return Loss: Greater than 14 dB
Port Isolation: Greater than 20 dB

Key Features

• Passive 1:4 splitter or 4:1 combiner

• Bidirectional RF operation

• Ultra-broadband frequency coverage

• DEV 2644/50 coverage from 500 to 2700 MHz

• DEV 2644/75 coverage from 400 to 2850 MHz

• 50 Ohm SMA and 75 Ohm precision F versions

• Low insertion-loss variation

• High port-to-port isolation

• DC pass-through capability

• No external power required

• Compact wall-mountable enclosure

• Suitable for satellite and broadband RF distribution
