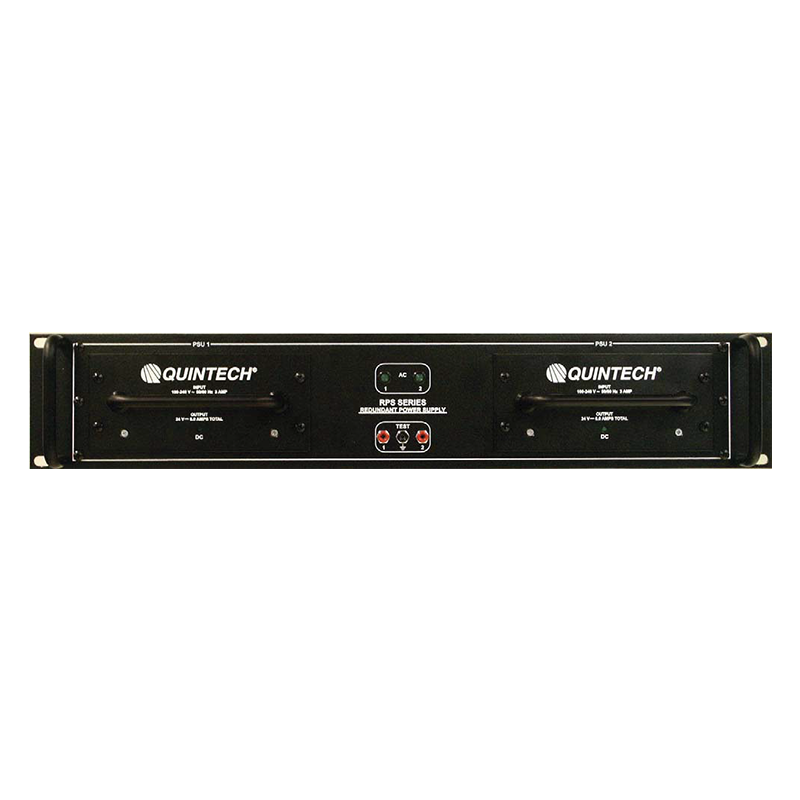

Quintech RPS2460FAB000 24 VDC 6A 16-Port Redundant RF Power Supply

Quintech RPS2460FAB000 24 VDC 6A 16-Port Redundant RF Power Supply

The Quintech RPS2460FAB000 (RPS 24/6.0) is a 2 RU redundant RF power supply designed to provide centralized +24 VDC power for as many as 16 LNAs, LNBs, upconverters, downconverters or line amplifiers. Sixteen independent RF paths operate from 270 to 2150 MHz, allowing RF signals and DC power to pass through the same 75-ohm Type F connections.

Two separately fused, drawer-mounted power supply modules provide redundant operation and allow straightforward module replacement. An RS-422 summary alarm monitors both supplies, while rear-panel green LEDs indicate the power status of each channel.

Each port includes an automatically resetting circuit breaker that limits current to 900 mA. If the connected load exceeds this limit, the affected port shuts down until its current demand falls below the trip point. The combined load across all 16 ports must not exceed 6 A.

Specifications:

Product Type: Redundant RF and DC Power Supply
Manufacturer: Quintech Electronics
Product Series: RPS 24/6.0
Part Number: RPS2460FAB000
Number of RF Paths: 16
Frequency Range: 270-2150 MHz
Output Voltage: +24 VDC
Maximum Current per Port: 900 mA
Maximum Total Output Current: 6 A
Insertion Loss: 0.5 ± 0.5 dB
Frequency Response: ±0.5 dB
Return Loss: 14 dB
RF Input Connectors: Sixteen Type F, 75 ohms
RF Output Connectors: Sixteen Type F, 75 ohms
Power Supply Modules: Two separately fused redundant modules
Module Configuration: Individually removable drawers
Channel Protection: Automatic-resetting 900 mA circuit breaker
Channel Status: Rear-panel green LEDs
Alarm Interface: RS-422 summary alarm
AC Power Requirements: 100-240 VAC, 50/60 Hz
Power Consumption: 50 W with no load; 210 W at full load
Mechanical: 2 RU rackmount
Dimensions: 3.5 in. H × 19 in. W × 20 in. D
Net Weight: 13.8 lb.
Gross Boxed Weight: 17.8 lb.
Certifications: CE, NRTL/TUV and FCC Part 15
Country of Manufacture: USA

Available now at Esatcom Inc. Please contact us for pricing and lead time.
